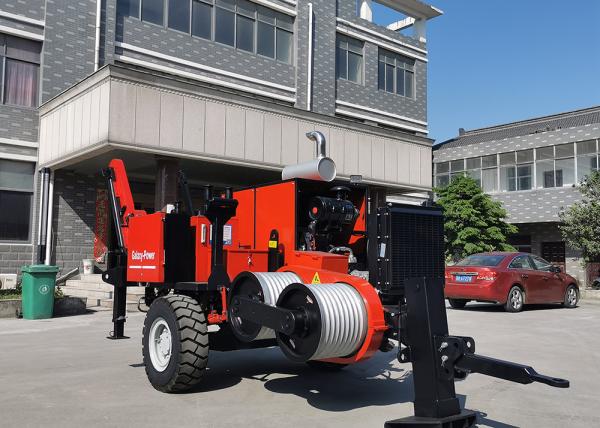

SA-QY90 9Ton Overhead Line Stringing Equiment Hydraulic Cable Puller Machine

Max intermittent pull 90kN Max continuous pull 80kN Speed at max pull 2.5km/h Max speed 5km/h Pull at max speed 40kN

9Ton Stringing Equiment Engine

Diesel 118kw(158hp) Cooling system water Electrical system 24V

9Ton Stringing Equiment Characteristics

Bull-wheel diameter 540mm Groove number 8 Max rope diameter 21mm Max diameter of rope reel 1400mm Total weight 4280kg Overall dimension 4250×2100×2500mm

9Ton Stringing Equiment Main Configuration

Engine Cummins Main pump German Rexroth Main motor speed reducer German Rexroth Tail bracket hoisting motor American Eton Hydraulic meter German WIKA Operating handle German Rexroth

9Ton Stringing Equiment Configuration

·Hydraulic dynamometer with set-point and automatic control of maximum pull

·Hydraulic oil cooling system

·Control instruments for hydraulic system and diesel engine

·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

·Hydraulic front stabilizer

·Grounding connection point

9Ton Stringing Equiment Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided

with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced

to "0") by automatically adjusting the operation speed according to the friction and unexpected loads

which may occur.

9Ton Stringing Equiment Additional Devices

·Lighting system for the trailer

·Hydraulic rope clamp for reel change

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Extra shaft ·Digital speed and meter counter (extra charge)

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
