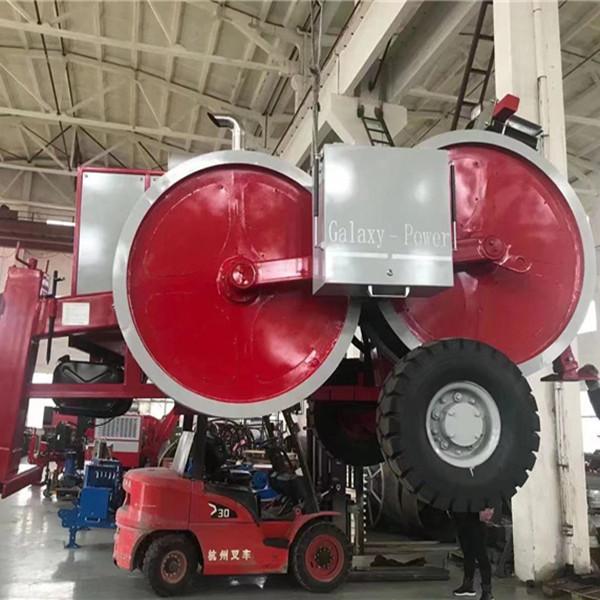

5 Groove Max intermittent 1x40KN Transmission Line Stringing
Equipment
1x40KN Transmission Line Stringing Equipment Description:
Operated with 40kN tension machine, this machine is mainly applied
in hilly and flat lands for tension stringing of 500kV conductors,
and because of the great convenience brought by the reverse
traction function, it is the better choice for the construction
in small projects of transmission lines such as the modification
works of rural and urban networks.
1x40KN Transmission Line Stringing Equipment Performance:
| Model | GL1x40 |
| Max. Tension Force (KN) | 45 |
| Continuous Tension Force (KN) | 40 |
| Max. Stringing Speed(km/h) | 5 |
| Max. Pullback force (KN) | 20 |
| Max. Pullback speed (km/h) | 2.5 |
| Diameter of wheel (mm) | Φ1300 |
| Number of grooves | 5 |
| Max. Conductor Diameter (mm) | Φ40 |
| Power of Diesel Engine | 77kw (103hp) |
| Electrical system: | 24V |
| Weight (kg) | 3430 |
| Dimension (mm) | 4000x2000x3000 |
1x40KN Transmission Line Stringing Equipment Characteristics:
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | | kg | mm |
| GL1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300x1250x1620 |
| GL1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080x1930x2300 |
| GL1X20II | 800 | 23 | | 45 | 5 | 950 | 2400x1500x1650 |
| GL1X20III | 800 | 22.5 | | 55 | 5 | 1150 | 2500x1500x1700 |
| GL1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700x1950x2150 |
| GL1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000x2000x2300 |
| GL1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000x1900x2300 |
| GL140IV | 1500 | 40 | | | 16 | 10000 | 5500x2280x2700 |
| GL2X35 | 1300 | 40 | | | 2x5 | 4500 | 4300x2250x2700 |
| GL2X40 | 1300/1500 | 40 | | | 2x5 | 6230 | 4300x2250x2700 |
| GL2X50 | 1300/1500 | 40 | | | 2x5 | 6000 | 4700x2300x2700 |
| GL2X70 | 1700 | 40 | | | 2x6 | 7500 | 4700x2300x2700 |
| GL2x70IV | 1500 | 40 | | | 2x8 | 10000 | 5500x2280x2700 |
| GL2X90 | 1900 | 50 | | | 2x6 | 7500 | 5400x2300x2700 |
| GL4x50 | 1500 | 40 | | | 4x5 | 13000 | 5900x2300x2700 |
1x40KN Transmission Line Stringing Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
1x40KN Transmission Line Stringing Equipment Remarks:
There are three important steps for selection of hydraulic
conductor tensioner:
First, it is important to know the diameter or model of biggest
conductor in transmission line project,
because the weight of conductor can be used to calculate the
tension force on conductor.
Second, how many conductors in one phase of transmission line? Is
it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it
Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in
one stringing section? How many towers
are there is one tension section?
1x40KN Transmission Line Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS
optic fiber cable stringing in overhead transmission
line stringing operation.
