97kw 2x40kN Hydraulic Overhead Cable Tensioner With Air Brake System

Ask Lasest Price
Brand Name :	Galaxy
Model Number :	GL2X70
Certification :	ISO9001 CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	15 sets/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

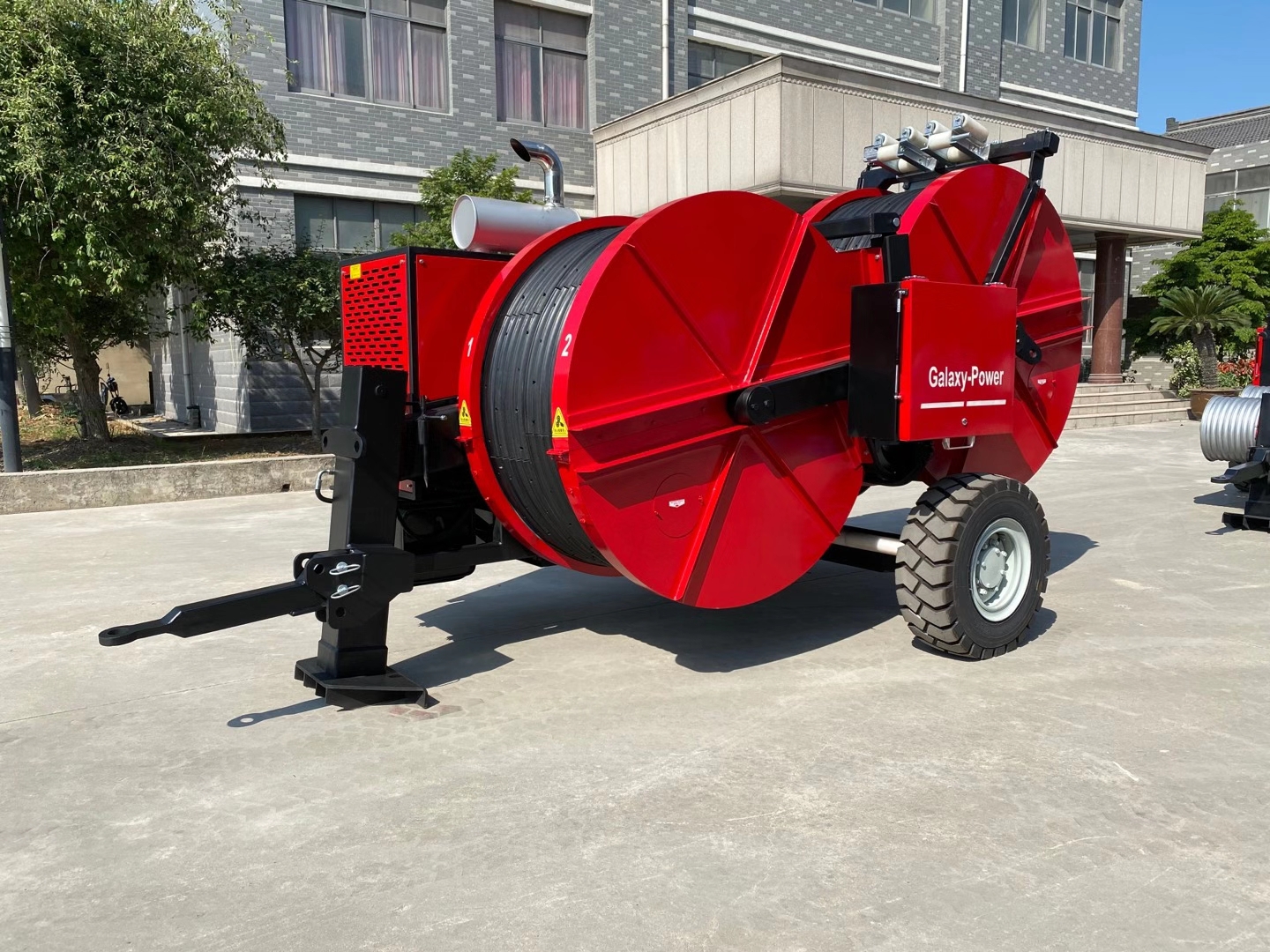

97kw 2x40kN Hydraulic Overhead Cable Tensioner With Air Brake System

Tensioner Machine For Overhead Stringing GL2x80 Hydraulic Tensioner

The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled.

Max tension	2x100kN / 1x200kN
Rated tension	2x80kN / 1x160kN
Speed at max tension	2.5km/h
Max feeding speed	5km/h
Pull at max speed	2x40kN/1x80kN
Max reverse pulling force	2x40kN/1x80kN
Max reverse pulling speed	3km/h
Bull-wheel diameter	1850mm
Groove number	2x6
Max conductor diameter	48.75mm
Total weight	10000kg
Overall dimension (lengthwidthheight)	5520×2280×2850mm
Diesel	97kw(130hp)
Cooling system	water
Electrical system	24V
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth
Hydraulic meter	German
Operating handle	German Rexroth

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter counters

2 digital speed meters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Air brake system for the trailer
