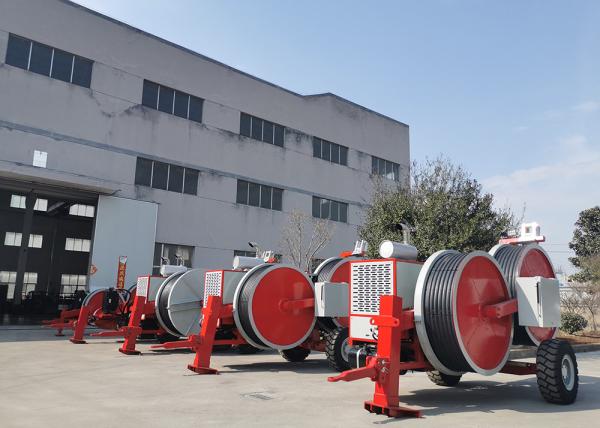

OPGW Overhead Transmission 16hp Conductor Tensioner Puller

    Buy cheap OPGW Overhead Transmission 16hp Conductor Tensioner Puller from wholesalers

    Buy cheap OPGW Overhead Transmission 16hp Conductor Tensioner Puller from wholesalers
    • Buy cheap OPGW Overhead Transmission 16hp Conductor Tensioner Puller from wholesalers
    • Buy cheap OPGW Overhead Transmission 16hp Conductor Tensioner Puller from wholesalers

    OPGW Overhead Transmission 16hp Conductor Tensioner Puller

    Ask Lasest Price
    Brand Name : GALAXY
    Model Number : GL1x30
    Certification : ISO/CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 80 sets per month
    Delivery Time : 15-25 days
    • Product Details
    • Company Profile

    OPGW Overhead Transmission 16hp Conductor Tensioner Puller

    Conductor Stringing Equipment GL 1x30 Hydraulic Tensioner For Overhead Lines

    OPGW Overhead Transmission 16hp Conductor Tensioner Puller


    Description For Conductor Stringing Equipment GL 1x30 Hydraulic Tensioner For Overhead Lines

    Hydraulic Tensioner GL1x30KN Suitable for deployment of 1 wire or rope.
    In Overhead Transmission For Stringing Conductor is used to string various conducts and earthwire.It is
    applied in a variety of electric conductors and ground. Also can for the tension stringing operation of both
    optical diber composite overhead ground wire (OPGW)nand all- dielectric self-supporting optic fiber cable(ADSS).

    Technical Parameters

    Performance ParameterMax Intermittent Tension2x55kN/1x110kN
    Correspond Speed100kN
    Max Continuous Stringing Speed5km/h
    Correspond Pulling Force5km/h
    Max Reverse Pulling Speed50kN

    Structure ParameterTension Puller Wheel Diameter1500mm
    Groove Number5
    Max Diameter Of Applicable Steel Conductor40mm
    Electric System24V
    Hydraulic Power Pack OutputRapid Connection With Hydraulic Conductor
    Total Weight6000KGS
    Overall Dimension(LxWxH)4500x2200x2400mm

    Main ConfigurationsEngineSino-USA Cummins
    Hydraulic PumpGerman Rexroth
    Hydraulic MotorGerman Rexroth
    Tail Bracket Hoisting MotorUSA Eaton
    Speed ReducerGerman Rexroth
    Main Hydraulic ValueGerman WIKI
    Operating HandleGerman Rexroth

    Configuration

    ·Hydraulic dynamometers

    ·Hydraulic oil cooling system

    ·Grounding connection point


    Hydraulic Transmission

    ·The machine can realize step less speed

    ·The machine is provided with tension presetting system


    Additional Devices
    ·Air brake system for the trailer (extra charge)
    ·Hydraulic conductor clamps for drum change operations (extra charge)
    ·Swivel guide rope roller
    ·Trailer for towing at max speed of 30 km/h
    Delivery
