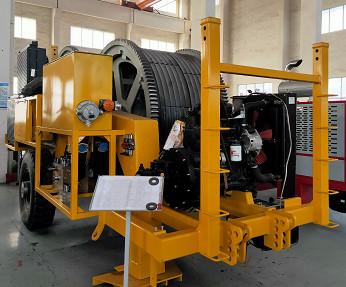

Characteristics

Bull-wheel diameter: 1700mm

Max rope diameter : 24mm

Max conductor diameter: 46mm

Total weight: 8000kg

Overall dimension (length*width*height): 4700×2300×2700mm

Performance

Puller

Max pull: 2x70kN/1x140kN

Speed at max pull: 2km/h

Max speed: 4.5km/h

Pull at max speed: 2x30kN/1x60kN

Tensioner

Max tension: 2x70kN/1x140kN

Max speed: 4.5km/h

Engine

Diesel 129kw(173hp)

Cooling system water

Electrical system 24V

Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Hydraulic Transmission

2 closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Digital meter counters

Control instruments for hydraulic system and diesel engine

Rigid axles for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp(extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter
