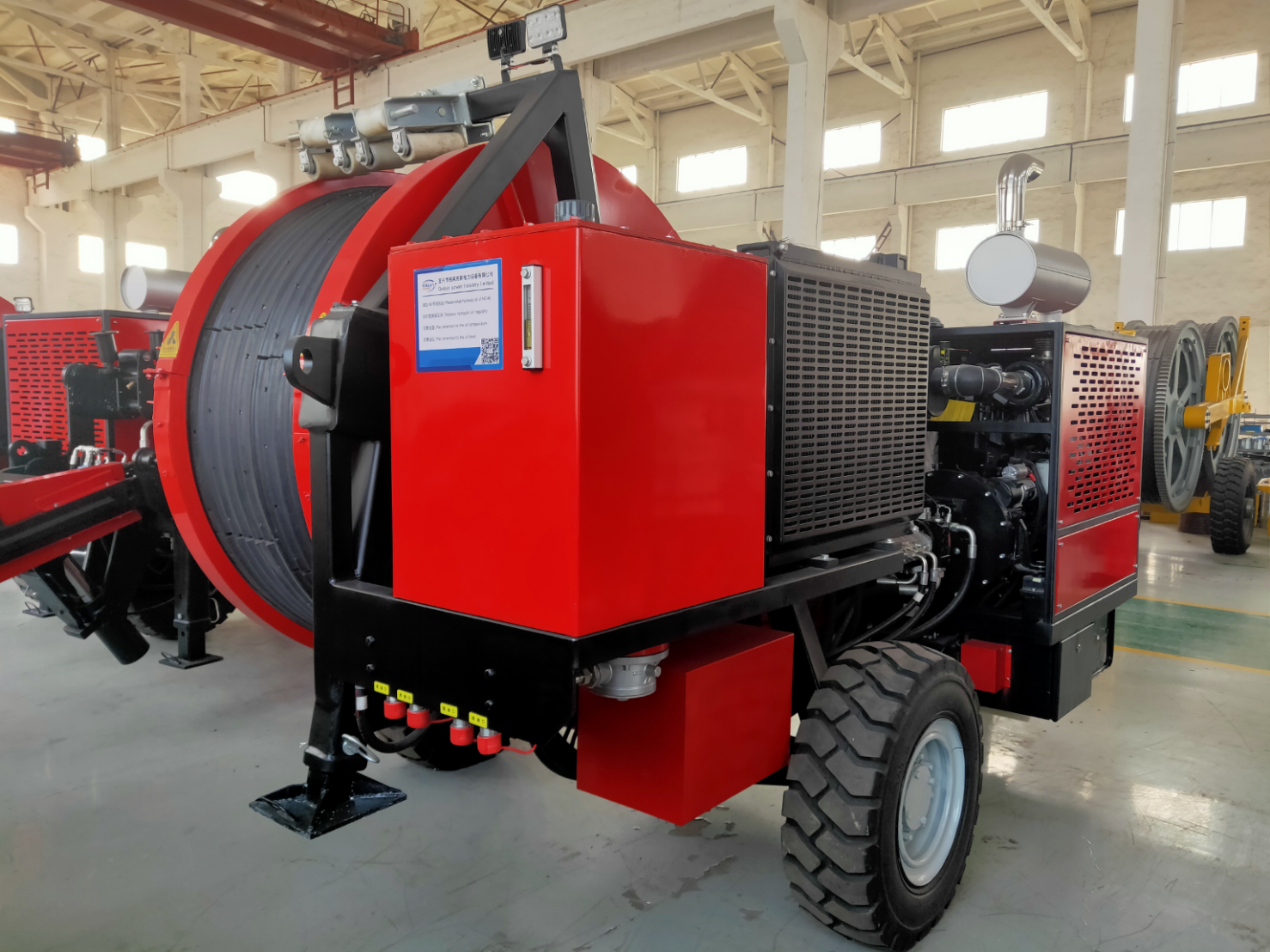

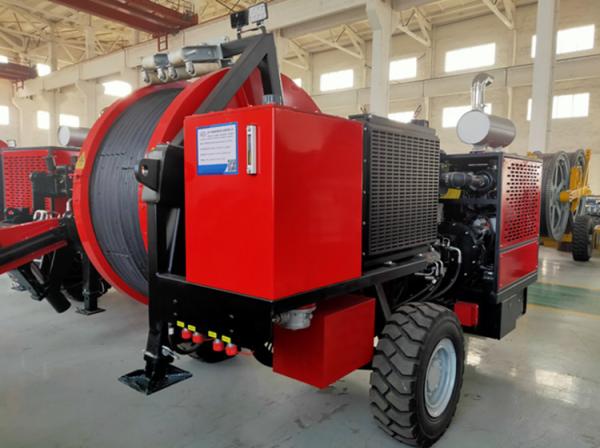

GL2x70TP 173hp Hydraulic Puller with Tensioner Transmission Line

The machine is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof nylon sectors. The machine is completely electronically controlled.

Configuration

• 2 Negative self-acting hydraulic brakes
• 2 Hydraulic dynamometers with set-point and automatic control of maximum pull
• Hydraulic oil cooling system
• Digital meter counters
• Control instruments for hydraulic system and diesel engine
• Rigid axles for towing at max speed of 30km/h with mechanical parking brake
• Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
• Hydraulic front stabilizer

• Additional Devices

• Lighting system for the trailer
• Hydraulic brake system for the trailer(extra charge)
• 2 Hydraulic conductor clamps for drum change operations (extra charge)
• Electronic pull and speed recorder

• Model	GL2X70
  Max tension kN	2X70/1X140
  Speed at max pull km/h	2
  Max speed km/h	4.5
  Pull at max speed kN	2X30/1X60
  Diesel kw(hp)	129(173)
  Bull-wheel diameter mm	1700
  Max rope diameter mm	24
  Max conductor diameter mm	46
  Total weight kg	8000
  Overall dimension mm	4700*2300*2700




Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
