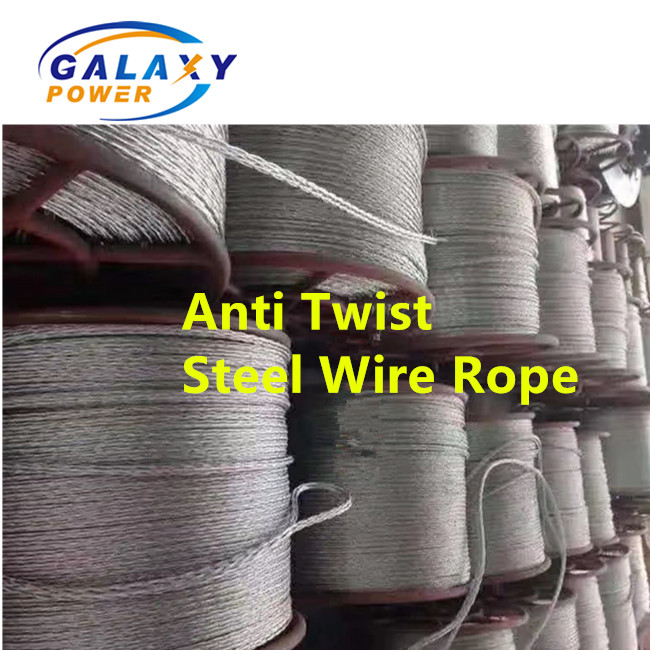

13mm Anti Twisting Pilot Rope Transmission Overhead Line Tool
Anti Twisting Pilot Rope Description:
It is specially braided from galvanized steel wire and widely used
as pilot rope in
overhead power transmission line stringing operation.
Anti Twisting Pilot Rope Quick details:
The antitwisting rope is availabe with several diameters that
depends on the type of the machine
such as there are diameters of 9,11,13,15, 16,18,20,........28,30mm
and these ropes have many advantages:
1. high flexibility.
2. complete stability to rotation.
3. homogeneous distribution of pressure between the elementary
wires.
4. increased efficiency during stringing operations.
5. strands with individual galvanized elementary wires.
- Anti Twisting Pilot Rope For Overhead Line
- Normal Diameter: 13mm
- Breakage load: 120kN
- Size available: 9~30mm
- Pilot Wire Galvanized Steel Wire Rope
- 6 Squares 12 Strands
- Length: 1000m
- Reel diameter: 1400mm
|
Anti Twisting Pilot Rope Technical Data:
| Item no. | Normal Diameter (mm) | Structure | Standard Length (m) |
| YL9-12x19 | 9 | 6 Squares 12 Strands | 1000 |
| YL11-12x19 | 11 | 6 Squares 12 Strands | 1000 |
| YL13-12x19 | 13 | 6 Squares 12 Strands | 1000 |
| YL15-12x19 | 15 | 6 Squares 12 Strands | 1000 |
| YL18-12x19 | 18 | 6 Squares 12 Strands | 1000 |
| YL20-12x19 | 20 | 6 Squares 12 Strands | 1000 |
| YL22-12XT25 | 22 | 6 Squares 12 Strands | 800 |
| YL24-12xT25 | 24 | 6 Squares 12 Strands | 800 |
| YL28-12xT29 | 28 | 6 Squares 12 Strands | 500 |
| YL30-12xT29 | 30 | 6 Squares 12 Strands | 500 |
| YL20-18x19 | 20 | 6 Squares 18 Strands | 1000 |
| YL22-18XT25 | 22 | 6 Squares 18 Strands | 500 |
| YL24-18xT25 | 24 | 6 Squares 18 Strands | 500 |
| YL28-18xT29 | 28 | 6 Squares 18 Strands | 500 |
| YL30-18xT29 | 30 | 6 Squares 18 Strands | 500 |
Company History:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in R & D,manufacturing
and sales of kinds of transmission line stringing equipment and
tools such as hydraulic puller, tensioner,underground cable
conductor pulleys, anti-twisting galvanized steel rope as well as
providing accessories and technicalservice for customer. Galaxy has
developed as one of the largest stringing equipment and tools
manufacturer in China which supply more than 200 varieties kinds of
goods now.
