    Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories

    Ask Lasest Price
    Brand Name : GALAXY
    Model Number : TYQY-125
    Certification : ISO9001 CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories

    Transmission Line Accessories Hydraulic Compressors Dies Pumps for Overhead Conductor


    Quick details:


    1. Transmission Line Stringing Equipment Accessories & Tools
    2. Hydraulic compressor for overhead conductor
    3. Max compression force: 1250kN
    4. Conductor size: ≤720
    5. Aluminum dies: 26~60mm Steel Dies: 12~26mm
    6. With Gasoline pump, Max force: 100Mpa

    7. Galaxy Brand


    Description:


    The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics: excellent weight/power ratio; very short pressing cycle (all the presses have an hydraulically-driven piston release); each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press.


    Specification:


    For compressor
    ModelMax compression force (kN)Rated pressure (kN)Conductor size (mm)Max stroke (mm)Weight (kg)
    QY-3535070≤2402512
    QY-6565094≤5002525
    QY-125125094≤7202540
    QY-200200094≤14402585

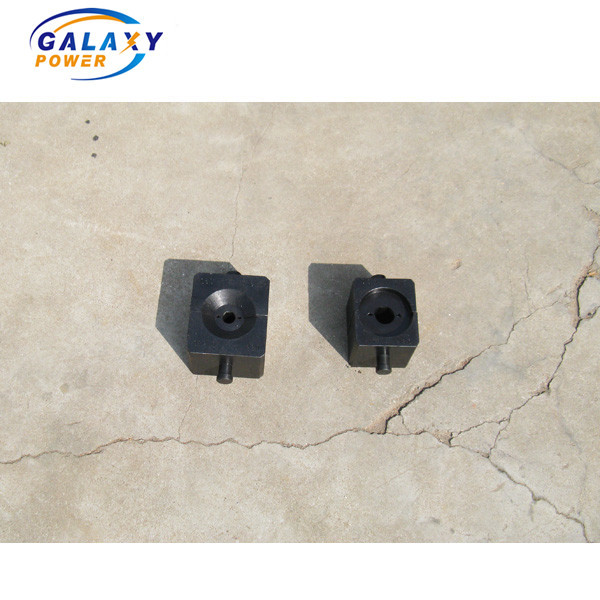

    For Die
    ModelCompressor modelAluminum DiesSteel DiesCopper Dies
    QYD-35QY-3516/18/20/22/24/26/30/32/34/3616~500mm2
    QYD-65QY-6526/28/30/32/34/36/38/40/45/5012/14/16/18/20/22/24/2616~800mm2
    QYD-125QY-12526/28/30/32/34/36/38/40/45/50
    /52/55/60
    12/14/16/18/20/22/24/2616~800mm2
    QYD-200QY-20026/28/30/32/34/36/38/40/45/50
    /52/55/60/65/70/75/80
    12/14/16/18/20/22/24/26
    /28/30/32
    16~800mm2

    For Gasoline pump
    ModelMax compression forceRated pressureFlowGasoline volumePowerWeight
    YB-100100Mpa80kN1.6L/min8L4hp83kg

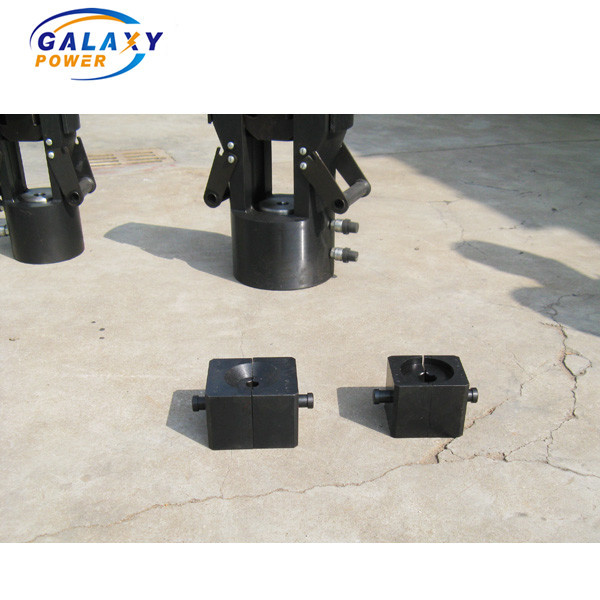

    More Pictures:


    COMPANY PROFLIE:
    Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
    Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
    1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
    2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
    3. We can supply the specific components to the buyers with cost price after warranty period.
