Brand Name : | Galaxy |
Model Number : | GLCVI-228 |
Certification : | ISO9001 CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 100 sets/month |
Delivery Time : | 35 days |

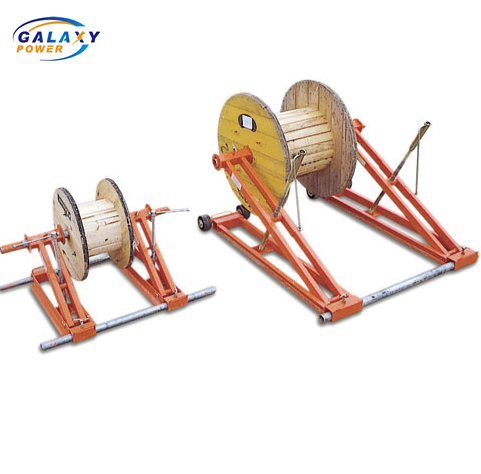

4 Ton Mechanical Cable Drum Jack Transmission Line Accessories Cable Drum Elevator
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Hydraulic Drum Elevators
3. Maximum drum size: 1500
4. Rated Load: 40KN
5. Welded Steel with protective coating
6. Drum Hole: 76-103mm
7. Maximum width of drum: 1100-1300mm
8. Galaxy Brand
Description:
The Drum elevators are made of welded steel with protective
coating, the frame is completely detachable to reduce dimensions
during transport.
Specification:
Model | Maximum drum size(mm) | Maximum width of drum(mm) | Drum hole(mm) | Capacity(KN) | Brake force(KN) | Rope speed(m/min) | Weight(kg) |
GLCVI-228 | 1500 | 1100-1300 | 76-103 | 40 | 2 | 80 | 290 |
GYCVI-229 | 2000 | 1500-1700 | 100-120 | 70 | 2 | 80 | 500 |
GYCVI-230 | 1500 | ≤1100 | 65-80 | 30 | 2 | 80 | 240 |
![]() |
