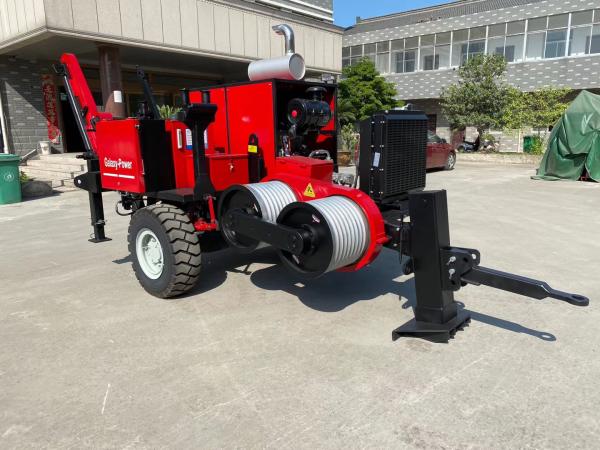

9Ton Hydraulic Puller Machine Transmission Line Equipment
Description:
Stringing equipment 90KN Hydraulic cable puller machine is applicable to release wire, ground wire,
cable in transmission line project.Together with tension machine, this model allows for the tension
stringing of 220kV lines in mountainous and hilly areas and can be
used for the traction stringing
of OPGW or ADSS cable in various terrains.
Product Detailed:
1. Overhead Line Stringing Equipment
2. Hydraulic Tensioner
3. Diesel: Cummins 118kw(158hp)
4. Main pump and motor: German Rexroth
5. Operating handle: German Rexroth
6. Max rope diameter: 18mm
7. Max pull: 90kN
8. Max conductor diameter: 40mm
9. Brand:GALAXY
Performance:
Max pull: 90kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 40kN
Max Tension: 90kN
Max Speed: 5km/h |
Characteristics:
Bull-wheel diameter: 1500mm
Max rope diameter : 18mm
Max conductor diameter: 40mm
Total weight: 4600kg
Overall dimension (length*width*height): 4700×2300×2700mm |
Main configuration:
| Engine | Cummins |
| Main pump | German Rexroth |
| Main motor speed reducer | German Rexroth |
| Tail bracket hoisting motor | American Eton |
| Hydraulic meter | German |
| Operating handle: | German Rexroth |
Engine:
Diesel 118kw(158hp)
Cooling system water
Electrical system 24V |
Configuration:
Negative self-acting hydraulic brakes
Hydraulic dynamometers with set-point and automatic control of
maximum pull
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 30km/h with mechanical
parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic
head or 2 reel winders with independent controls
Hydraulic front stabilizer
Grounding connection point
Hydraulic Transmission:
Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with
2 pull pro-setting system that maintains the pre-set pulling value
(also when the speed is reduced to "0") by
automatically adjusting the operation speed according to the
friction and unexpected loads which may occur.
Additional Devices:
·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter
Company History:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in R & D,
manufacturing and sales of kinds of transmission line stringing
equipment and tools such as hydraulic puller, tensioner,
underground cable conductor pulleys, anti-twisting galvanized steel
rope as well as providing accessories and technical
service for customer. Galaxy has developed as one of the largest
stringing equipment and tools manufacturer in China
which supply more than 200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
