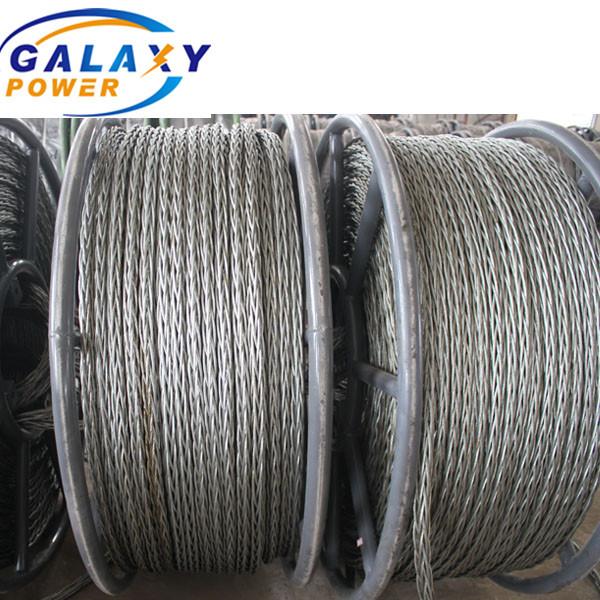

30mm Overhead Transmission Line Tool Anti Twist Rope Steel Wire
Rope 6 Squares 12 Strands
Description:
Anti-twist braided wire rope with high strength hot dip galvanized
steel quality air processed by the
special process of special woven rope line. It has high strength,
good flexibility, corrosion rust-proof,
not to fight the golden hook, and difficult to tie, long life and
so on. Tension applied to pay-off power
lines construction, lifting equipment with the balance shaft and
the tail rope of mine, port and other
major lift crane wire rope does not rotate when the required place.
Quick details:
- Transmission Line Stringing Accessories
- Normal Diameter: 30mm
- Breakage load: 540kN
- Size available: 9~30mm
- Anti twisting Braided Galvanized Steel Wire Rope
- 6 Squares 12 Strands
- Length: 1000m
- Reel diameter: 1600mm
Usage :
Applied to mechanical pulling and tensioning release conductors as
pulling rope or leading rope.
Feature:
It can homogeneously distribute the pressure between the elementary
wires. The special rope
can increase efficiency during the overhead transmission line
stringing work. The rope is packed
in steel drum which can be installed directly on the reel winder of
puller.
Technical Data:
|
| Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) | Diameter of spool (mm) | Total weight (kgs) |
| YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
| YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
| YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
| YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
| YL15-12x19W | 15 | 12 Strands | 158 | 1000 | 1250 | 886 |
| YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
| YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
| YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
| YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
| YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
| YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
| YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
| YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
| YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
| YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
| YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |
Company History:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in R & D,manufacturing and
sales of kinds of transmission line stringing equipment and tools
such as hydraulic puller, tensioner,underground cable conductor
pulleys, anti-twisting galvanized steel rope as well as providing
accessories and technicalservice for customer. Galaxy has developed
as one of the largest stringing equipment and tools manufacturer in
China which supply more than 200 varieties kinds of goods now.
