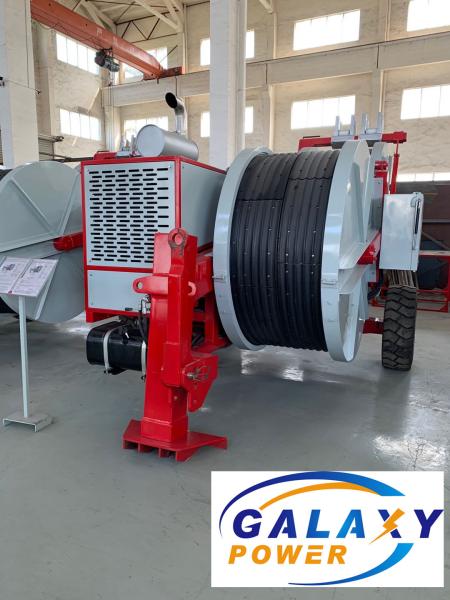

9Ton Hydraulic Tensioner Cummins Engine Transmission Line Equipment
9T Transmission Line Equipment Description:
The machine allows for the tension stringing of twin-bundle
conductor of 630mm2 and below in mountainous
and hilly areas, of twin-bundle conductor of 720mm2 and below in
flat lands, and of conductor 720mm2 in
various terrains; besides, it can be used for tension stringing of
OPGW or ADSS optical cable and 500kV
haulage rope in various terrains
9T Transmission Line Equipment Detailed Information:
- Model: GL2X45
- Overall dimension:4300×2250×2700mm
- 2 hydraulic dynamometers
- 2 digital meter counters
- 2 digital speed meters
- Hydraulic oil cooling system
- Grounding connection point
| Max intermittent tension | 2x45/1x90kN |
| Max continuous tension | 2x40/1x80kN |
| Speed at max pull | 2.5km/h |
| Max speed | 5km/h |
| Tension at max speed | 2x20/1x40kN |
| Max reverse pulling force | 2×35/1x70kN |
| Max reverse pulling speed | 5km/h |
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electrical system | 24V |
| Bull-wheel diameter | 1300/1500mm |
| Max conductor diameter | 40mm |
| Groove number | 2x5 |
| Total weight | 6230kg |
| Overall dimension | 4300×2250×2700mm |
| Engine | Cummins |
| Hydraulic pump | GermanRexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Company Information:
Galaxy power industry limited was established in 2018, a high-tech
enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as
hydraulic
puller, tensioner, underground cable conductor pulleys,
anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has
developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than
200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
OEM&ODM:
We can do OEM/ODM. All of our products comply with international
quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola,
Pakistan etc.
Our products are also very popular and best-selling in China.
