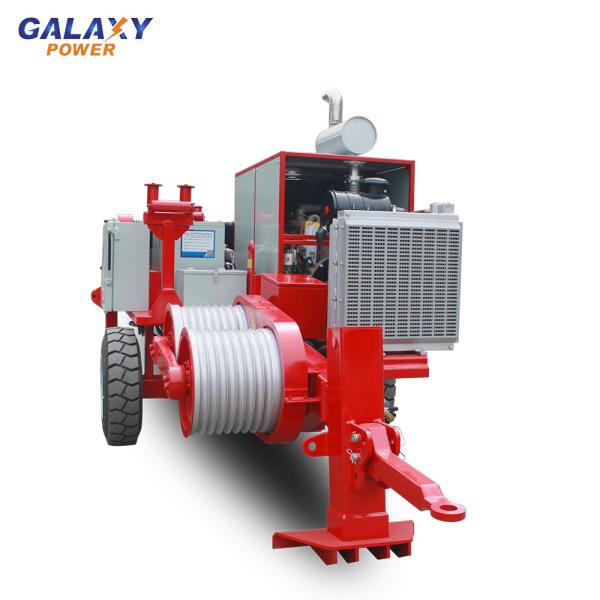

12Ton Pulling Cable Cummins Diesel Overhead Line Stringing Equipment

12T Overhead Line Stringing Equipment Quick details:

1. Power Line Stringing Equipment

2. Hydraulic Puller

3. Max pull: 120kN-12tons

4. Diesel: Cummins 129kw-173hp

5. Main pump motor & Speed Reducer: German-Rexroth

6. Tail bracket hoisting motor: American-Eton

7. Max rope diameter: 24mm

8. Max reel size: 1400mm

9. Brand:GALAXY

The machine allows for the tension stringing of 4-bundle conductor of 630mm² and below in mountainous

and hilly areas, and of 4-bundle conductor of 720mm² and below in flat lands; besides, it can be used for

traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

12T Overhead Line Stringing Equipment Performance

• Max intermittent pull: 120kN
• Max continuous pull: 100kN
• Speed at max pull: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 50kN

12T Overhead Line Stringing Equipment Engine

• Diesel 129kw(173hp)
• Cooling system water
• Electrical system 24V

12T Overhead Line Stringing Equipment Characteristics

Bull-wheel diameter: 540mm

Groove number: 10

Max rope diameter : 24mm

Max diameter of coupling: 100mm

Electric system: 24V

Max diameter of rope reel: 1400mm

Total weight: 4800kg

Overall dimension (length*width*height): 4000×2300×2300mm

12T Overhead Line Stringing Equipment Main configuration

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer

Grounding connection point

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter
