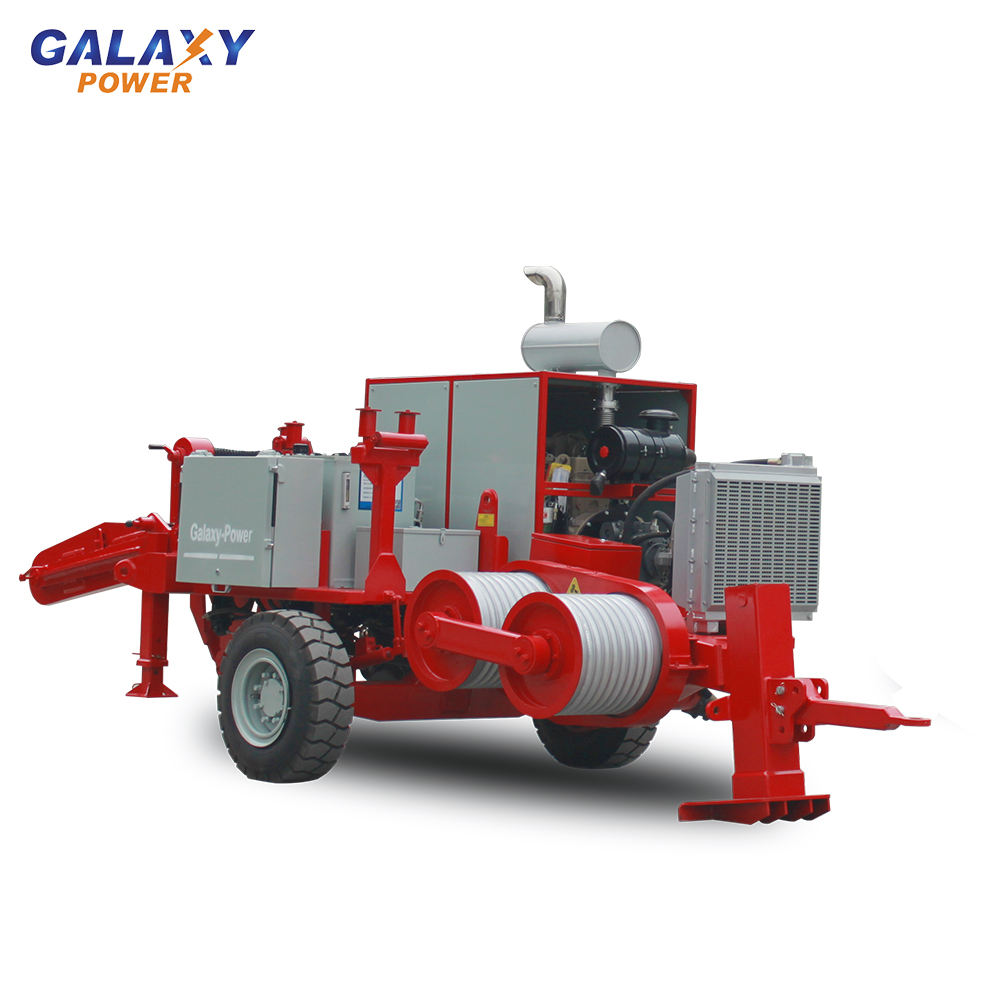

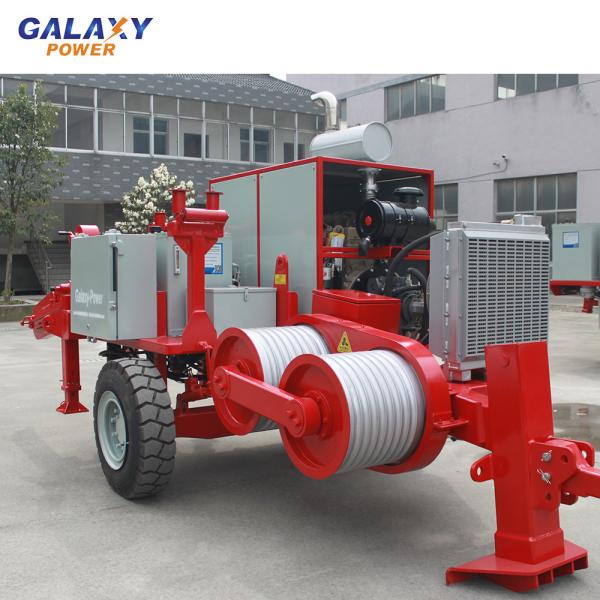

38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment

38T Transmission Stringing Equipment Description:

This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle

conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension

stringing of 500kV haulage rope in various terrains.

1. Transmission Line Stringing Equipment

2. 380kN German Rexroth Pump & Motor Stringing Equipment

3. Max pull: 380kN
4. Diesel: Cummins 440kw
5. Main pump and motor: Rexroth
6. Max rope diameter: 38mm

7. Brand:GALAXY

38T Transmission Stringing Equipment Performance :

1. Max intermittent pull:380kN
2. Max continuous pull: 350kN
3. Speed at max pull: 2.5km/h
4. Max speed: 5km/h
5. Pull at max speed: 170KN

38T Transmission Stringing Equipment Engine:

1. Diesel 400kw(590hp)
2. Cooling system water
3. Electrical system 24V

38T Transmission Stringing Equipment Characteristics:

1. Bull-wheel diameter: 960mm
2. Groove number: 11
3. Max rope diameter : 38mm
4. Max diameter of coupling: 100mm
5. Electric system: 24V
6. Max diameter of rope reel: 1600mm
7. Total weight: 12800kg
8. Overall dimension (length*width*height): 6000×2500×2850mm
9. Diesel: 440KW(590hp)

38T Transmission Stringing Equipment Main configuration:

Configuration:

Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1900
Hydraulic front stabilizer
Grounding connection point

Hydraulic Transmission:

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices :

Lighting system for the trailer

Air brake system for the trailer
Hydraulic rope clamp for reel change(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter
