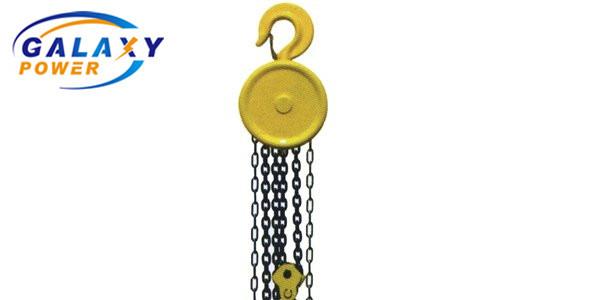

10T Alloy Structural Steel Chain Hoist Overhead Line Construction
Tools Load 125KN Lifting Height 3m
Product description:
1. The structure is compact and reasonable, the whole machine runs
smoothly, and the appearance is beautiful and novel.
2. Double pawl and stamping guide chain plate (double guide wheel
structure selection) are more safe and reliable.
3. The main components and the performance of the whole machine are
strictly checked and tested. The reliability of the product is
greatly improved and the use is safe.
4. Designed and manufactured according to the standard of En13157.
5. It meets European CE safety standards.
6. This product has been widely used in nuclear power, thermal
power, power transmission and transformation.
7. Using 800Mpa high-strength lifting chain and forged hook design
to ensure slow lifting to prevent overload.
8. The overall bearing is adopted, which greatly improves the
performance, service life and easy maintenance of the product.
Quick details:
- Transmission Line Stringing Equipment Accessories & Tools
- Chain hoist
- Capacity ranges from 0.5t~50t
- Other colors available
- Standard lifting height from 2.5m to 3m
- GALAXY Brand
|
Product Parameters:
| Model | GLHSC-0.5A | GLHSC-1A | GLHSC-1.5A | GLHSC-2A | GLHSC-3A | GLHSC-5A | GLHSC-10A | GLHSC-20A | GLHSC-30A | GLHSC-50A |
| Rated load lifting capacity ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard lifting height m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test load KN | 6.3 | 12.5 | 18.7 | 25 | 37.5 | 63 | 125 | 250 | 375 | 625 |
| Hand pull when fully loaded N(KG) | 200 (20.5) | 304 (31) | 343 (35) | 410 (41.8) | 343 (35) | 414 (42.2) | 423 (43.2) | 435x2( 44.3x2) | 435x2 (244.3x2) | 435x2 (244.3x2)
|
| Lifting chain number | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 22 |
| Lifting chain diameter mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 |
Maufacturer Introduction:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as
hydraulic
puller, tensioner, underground cable conductor pulleys,
anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has
developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than
200 varieties kinds of goods now.
OEM&ODM:
We can do OEM/ODM. All of our products comply with international
quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola,
Pakistan etc.
Our products are also very popular and best-selling in China.
