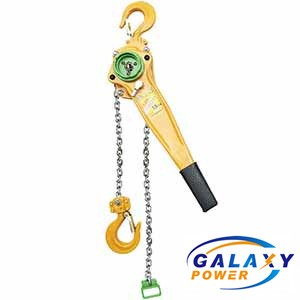

1.5 Ton Lever Hoist Overhead Line Construction Tools Standard
Lifting Height 1.5m Test Load 22.5KN
Quick details:
- Transmission Line Stringing Equipment Accessories & Tools
- Chain hoist
- Capacity ranges from 0.75ton to 9ton
- Other colors available
- Standard lifting height from 1.5m to 3m
- GALAXY Brand
Product description:
- Lever block has hand chain lever hoist and rope lever block.
- Lever block hoist can be lifted, towing, lowered and calibrated by
hand.
- Lever block can achieve the purpose of tension and lifting through
Handle pulls ring chain or wire rope.
- It can fixed large equipment and other goods in automobile
transportation.
- If equipped with a special device such as a line clamp, it can not
only be used for non-linear traction, but also it can choose the
suitable operation position very conveniently.
- Hand lever hoist is mainly used to tighten power and overhead lines
and other cable lines, traction, moving equipment and other heavy
objects.
- With the machine of lesser tonnage double ground expands its load
capacity, to larger tonnage load it can use some hand lever hoist
to work side-by-side.
Product Parameter:
| Model | GLHSH-0.75A | GLHSH-1.5A | GLHSH-3A | GLHSH-6A | GLHSH-9A |
| Rated load lifting capacity | ton | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lifting height | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Test load | kn | 11.0 | 22.5 | 37.5 | 75.0 | 112.5 |
| Hand pull when fully loaded | n | 140 | 240 | 320 | 340 | 360 |
| Lifting chain line number | | 1 | 1 | 1 | 2 | 3 |
| Lifting chain diameter | mm | 6 | 8 | 10 | 10 | 10 |
| | | | | | |
Maufacturer Introduction:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as
hydraulic
puller, tensioner, underground cable conductor pulleys,
anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has
developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than
200 varieties kinds of goods now.
OEM&ODM:
We can do OEM/ODM. All of our products comply with international
quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola,
Pakistan etc.
Our products are also very popular and best-selling in China.
