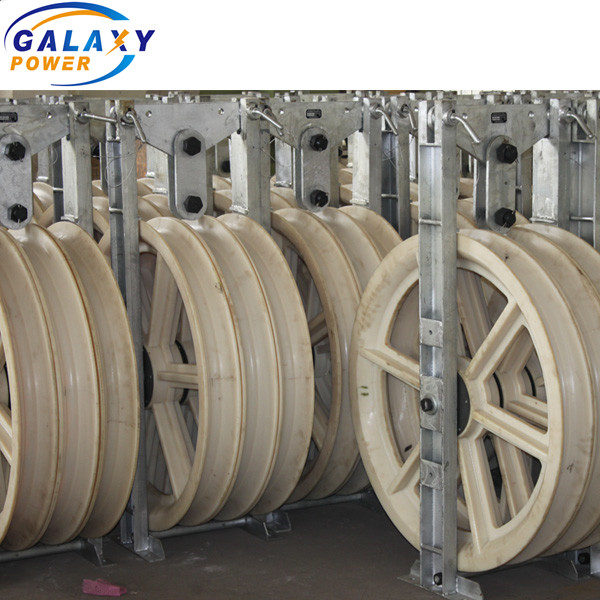

Three Wheel Transmission Overhead Line Stringing Pulley Block
1040x125mm
Stringing Pulley Block Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley Diameter: 1040mm
Width: 125mm
3. Three Wheels Nylon Wheels
4. Galvanized Steel Frame
5. With Rubber Covered or Without Rubber
6. Rated Load: 110kN
7. Wheel Width: 125mm
Stringing Pulley Block Cable Pulley:
Stringing blocks have different diameter were used to string
different conductors.
Our Large diameter stringing blocks are High strength and
flexibility,easy to use,light weight,and long service.
Stringing Pulley Block parameter:
Three Wheels-The pulleys are suitable for string two or three
bundled conductor lines.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Usage:
Protect the cable and conductor from fricting when they are
laying.They can save time and effort.
a. We manufacture a lot of models for different uses in the
overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio
lines.
c. The sheave of the pulley blocks are made from higth strength MC
nylon,or aluminum materials ,and the frame of blocks are made of
galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to
the customers's requirements.
If any interested,please feel free to contact with us for more
information,and we will try our best to comply with your
requirements
