508x75mm Single Nylon Wheel Overhead Stringing Blocks conductor
pulley
Stringing Blocks conductor pulley Quick details:
1. Transmission Line Stringing tool
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 508mm Wheel Width: 75mm
4. Galvanized Steel Frame
5. With Rubber Covered or Without
6. Rated Load: 20kN
Stringing Blocks conductor pulley Descripition:
Stringing blocks have different diameter were used to string
different conductors.
Our Large diameter stringing blocks are High strength and
flexibility,easy to use,light weight,and long service.
Stringing Blocks conductor pulley Apply For:
Protect the cable and conductor from fricting when they are
laying.They can save time and effort.
Nylon pulley conductor stringing block parameter:
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105
|

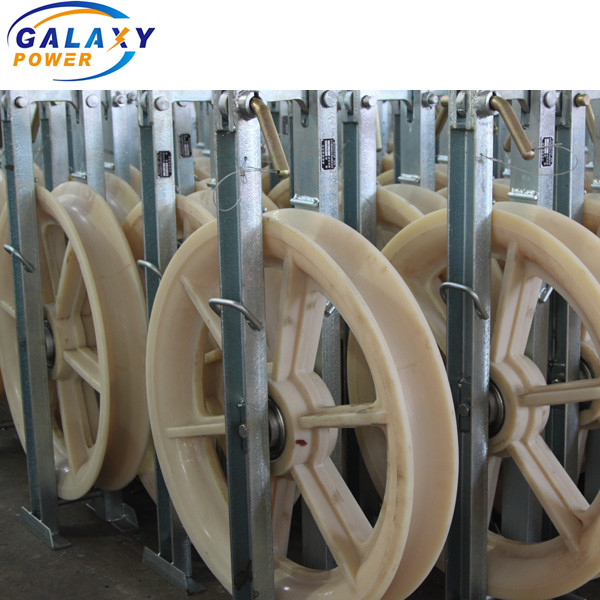

Nylon pulley conductor stringing block :
COMPANY PROFLIE:
Established in 2016, Galaxy Power Industry Limited. is a
manufacturer specialized in the research, development and
production of Electric Power Machinery. We are a high-tech
enterprise in China. All of our products comply with international
quality standards and are greatly appreciated in a variety of
different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru,
Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are
also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins Main pump: German Rexroth Main motor:
German Rexroth Speed reducer: German Rexroth Tail bracket hoisting
motor: American Eton Hydraulic meter: German Operating handle:
German Rexroth
2. We have one year quality guarantee. if internal components go
wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost
price after warranty period.
