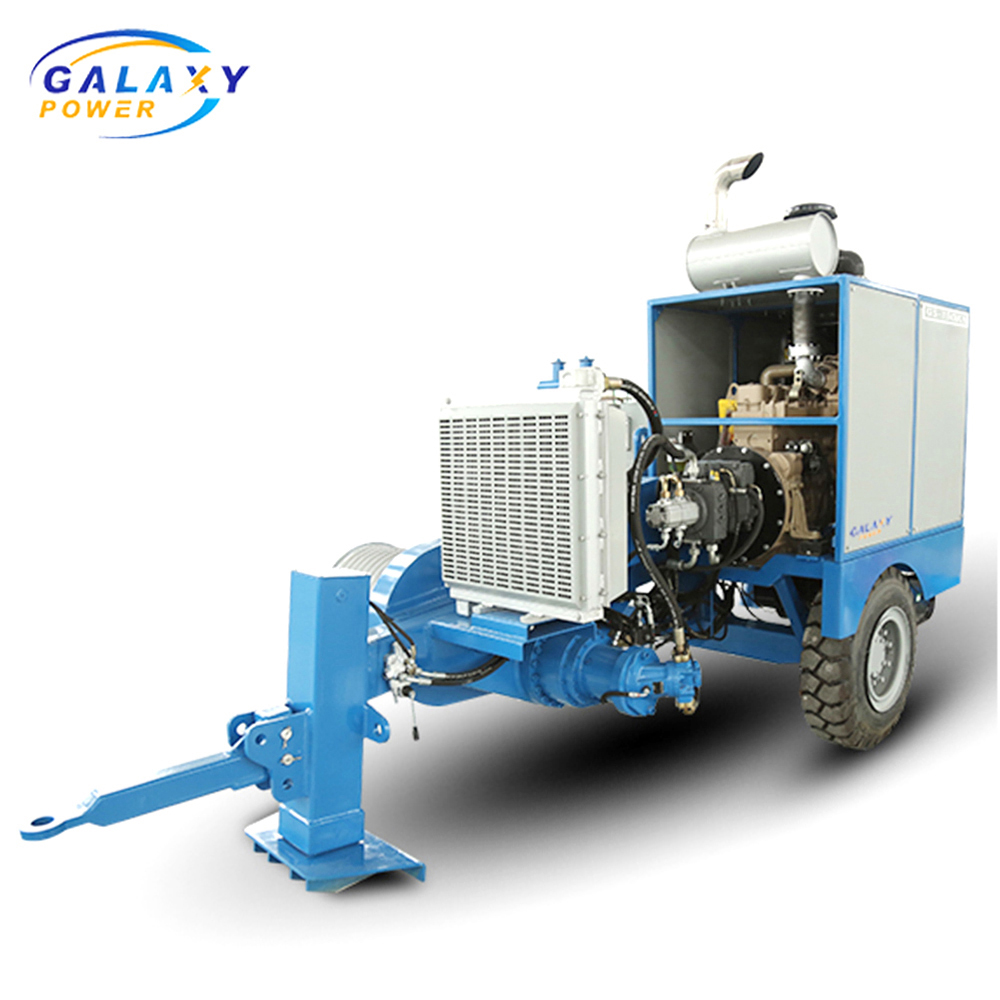

Max 18Ton Pulling Cable Diesel Transmission Line Stringing
Equipment
18T Transmission Line Stringing Equipment Description:
18 Ton Hydraulic Winch Puller is used for overhead transmission
line two or four conductors stringing.
The machine is equipped with water cooled Cummins Engine, rexroth
hydraulic pump and hydraulic motor,
closed hydraulic system.
We are CE qualified manufacture for hydraulic stringing equipments,
Our products sell in Australia, Turkey,
Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan
etc.
Our products are also very popular and best-selling in China.
18T Transmission Line Stringing Equipment Performance :
| Model | GS180 |
| Max. Pulling Force (KN) | 180 |
| Max. Continuous Pulling Force (KN) | 160 |
| Speed at Max. continuous pull: | 2.5km/h |
| Max. Pulling Speed (m/min) | 5km/h |
| Root Diameter of Bull wheel (mm) | Φ700 |
| Number of grooves | 10 |
| Max. Steel rope Diameter (mm) | Φ27 |
| Model of Diesel Engine | Water cooled diesel engine |
| Power of Diesel Engine | 239 KW |
| Electrical System | DC24V |
| Weight (kg) | 6800 |
| Dimension (mm) | 4300*2360*2380 |
18T Transmission Line Stringing Equipment Main configuration:
| Engine | Cummins |
| Main pump | German Rexroth |
| Main motor speed reducer | German Rexroth |
| Tail bracket hoisting motor | American Eton |
| Hydraulic meter | German |
| Operating handle: | German Rexroth |
18T Transmission Line Stringing Equipment Configuration:
Hydraulic dynamometer with set-point and automatic control of
maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for
standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point
18T Transmission Line Stringing Equipment Hydraulic Transmission:
Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with
a pull pro-setting system that maintains the pre-set pulling value
(also when the speed is reduced to "0") by
automatically adjusting the operation speed according to the
friction and unexpected loads which may occur.
18T Transmission Line Stringing Equipment Application:
The hydraulic puller is used to pull four bundled conductors or 2
bundled conductors for power line construction.
It is fully hydraulic controlled, easily used and maintained
Company Information:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in R & D,
manufacturing and sales of kinds of transmission line stringing
equipment and tools such as hydraulic puller, tensioner,
underground cable conductor pulleys, anti-twisting galvanized steel
rope as well as providing accessories and technical
service for customer. Galaxy has developed as one of the largest
stringing equipment and tools manufacturer in China
which supply more than 200 varieties kinds of goods now.
