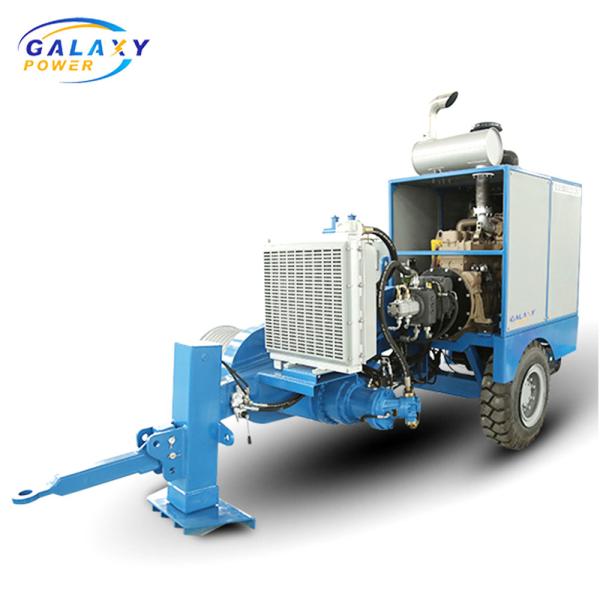

Hydraulic Machine Stringing Equipment 180kN 239kw(320hp) Hydraulic Puller

Quick Detail

• Model: GS180
• Dimensions of the whole machine: 4300*2360*2380mm

The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Configuration

• Hydraulic dynamometer with set-point and automatic control of maximum pull.
• Hydraulic oil cooling system
• Control instruments for hydraulic system and diesel engine.
• On board reel winder with automatic level wind, suitable for standard reel mod.1100 and 1400
• Hydraulic front stabilizer
• Grounding connection point

Main configuration

• Engine: Cummins
• Main pump: German Rexroth
• Main motor speed reducer: German Rexroth
• Tail bracket hoisting motor: America Eton
• Hydraulic meter: German
• Operating handle: German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

• Lighting system for the trailer
• Hydraulic rope clamp for reel change
• Swivel guide rope roller
• Trailer for towing at max speed of 30 km/h
• Extra shaft
• Digital speed and meter counter (extra charge)

COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
