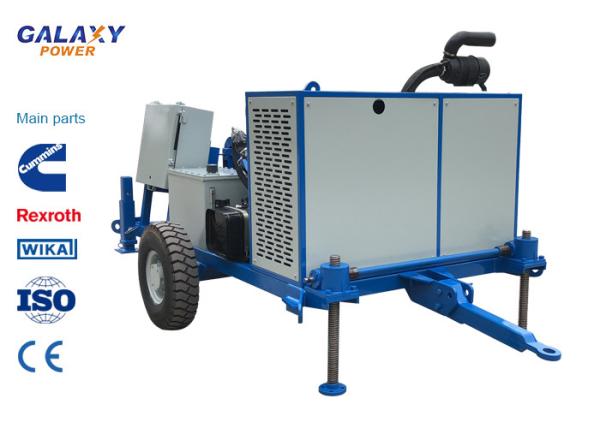

GP100 Underground Cable Equipment Yanmar Japan 49.2hp Puller

Performance

• Model: GP100
• Max pull force: 100kN
• Maximum cable diameter:80 mm
• Max speed at Continuous pull: 17m/min
• Pull at max speed: 15kN
• Max speed: 83m/min
• Total weight: 3350kg
• Capstans: 350x650mm
• Continuous pull effort: 80kN
• Overall dimension (length*width*height): 4000*2200*1800mm

Main Configuration

• Engine: Yanmar Japan
• Hydraulic motor: Rexroth German
• Hydraulic pump: Danfoss
• Hydraulic meter: German
• Operating handle: Bondioli & Pavesi Italy
• Hydraulic valve: Sun USA

Engine

• Diesel: Yanmar Japan 49.2hp/36kw
• Cooling system water
• Electrical system 12V

Configuration

• Control panel with instruments for hydraulic system and engine.
• A dynamometer used to check pull values
• Mechanical front and rear stabilizer
• Grounding connection point
• Large channel steel capstan with anti-skid device
• Hydraulic oil cooling system
• In the case of over pull, the preset for maximum tension can stop the puller
• The hydrostatic loop, which allows the puller to continue to change speed in two rotational modes, can operate only one command
• Hydraulic emergency brake operates automatically at the center of the instruction bar or in the case of hydraulic failure (not suitable for lifting)

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
