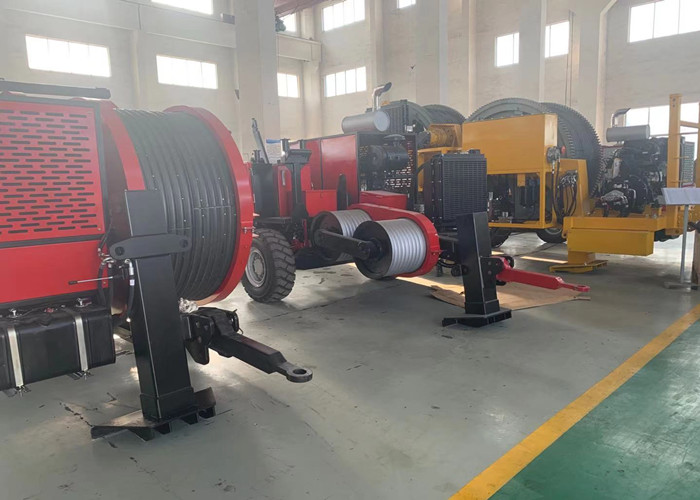

14 Ton Hydraulic Tensioner stringing equipment is used for two
conductors stringing on 800 or 1000 KV transmisson line.
It is equipped with Germany Deutz diesel engine, Germany Rexroth
Hydraulic pump and motor.
14Ton Hydraulic Cable Tensioner Stringing Machine Quick details
1. Hydraulic Tension Stringing Equipment 2. Hydraulic Tensioner for two bundle conductor 3. Max tension: 2x70kN/140kN 14Tons 4. Diesel: Cummins 77kw(103hp) 5. Main pump and motor and speed reducer: German (Rexroth) 6. Hydraulic meter: German 7. Max conductor diameter: 40mm 8. Groove number: 2x6 9. Bull-wheel diameter: 1700mm 10. GALAXY Brand
|
14Ton Hydraulic Cable Tensioner Stringing Machine Main configuration
- Engine: Cummins
- Operating handle: German Rexroth
- Hydraulic pump: German Rexroth
- Main motor: German Rexroth
- Speed reducer: German Rexroth
- Hydraulic meter: German
14Ton Overhead Line stringinging equipment Performance
Max intermittent tension: 2x70kN
Max continuous tension: 2x65kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Tension at max speed: 2x25kN
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h
14Ton Overhead Line stringinging equipment Description
The 14Ton overhead line stringing equipment allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS
optical cable and 500kV haulage rope in various terrains
14Ton Overhead Line stringinging equipment Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
14Ton Overhead Line stringinging equipment Characteristics
Bull-wheel diameter: 1700mm
Max conductor diameter: 40mm
Groove number: 2x6
Total weight: 7500kg
Overall dimension (length*width*height): 4700×2300×2700mm
14Ton Overhead Line stringinging equipment Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical
parking brake
Hydraulic power pack to control up to 2 separate drum stands with
hydraulic motor
Grounding connection point
14Ton Overhead Line stringinging equipment Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
14Ton Overhead Line stringinging equipment Additional Devices
·Lighting system for the trailer
·Hydraulic brake system for the trailer
·2 hydraulic conductor clamps for drum change
operations (extra charge)
·Electronic pull and speed recorder
