5km/H Diesel Electric Cable Pulling Machine , Underground Wire Pulling Equipment

Product Categories

Galaxy power industry limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 5kmH Diesel Electric Cable Pulling Machine Underground Wire Pulling Equipment
Brand: GALAXY
Price: 1 USD

Add to Cart

Engine Cummins Max intermittent tension 2x70/1x140kN Hydraulic Diesel 77kw(103hp)

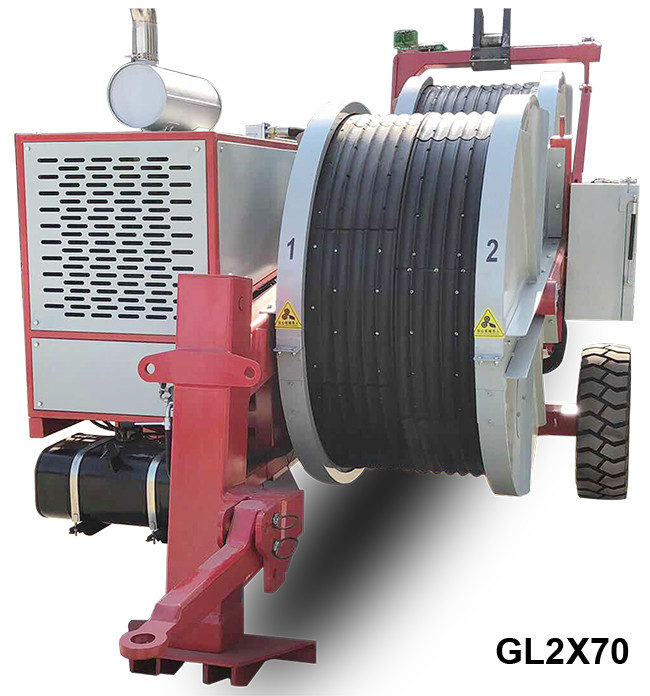

Model		GL1X20	GL1X40	GL1X50	GL2X35	GL2X40	GL2X50	GL2X70
Maximum intermittent tension	kN	20	45	50	2×40/1×80	2×45/1×90	2×55/1×110	2×70/1×140
Maximum sustained tension	kN		40	40	2×35/1×70	2×40/1×80	2×50/1×100	2×65/1130
Correspending speed	km/h		2.5	2.5	2.5	2.5	2.5	2.5
Maximum pay-off speed	km/h	5	5	5	5	5	5	5
Corresponding tension	kN		20	25	2×20/1×40	2×20/1×40	2×25/1×50	2×25/1×50
Maximum back-traping force	kN		35	45	2×30/1×60	2×35/1×70	2x45/1x90	2×60/1×120
Maximum back-traping speed	km/h		5	2.4	5	5	5	5
Bull-wheel diameter	mm	1300	1300	1300/1500	1300	1300/1500	1300/1500	1700
Max conductor diameter	mm	40	40	55	40	40	40	40
Max Optical fiber cable diameter	mm	21	21	21
Groove width	mm	55	55	68
Groove number		5	5	6	2×5	2×5	2×5	2×6
Total weight	kg	1920	3430	2400	4500	6230	6000	7500

Quick Details

Main Configuration
Engine	Cummins
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth
Hydraulic pump	GermanRexroth/Dnish Danfoss
Hydraulic meter	German
Operating handle	German Rexroth
Configuration
2 hydraulic dynamometers
2 negative self-acting hydraulic brakes
2 digital meter counters
2 digital speed meters
Grounding connection point
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

5km/H Diesel Electric Cable Pulling Machine , Underground Wire Pulling Equipment
