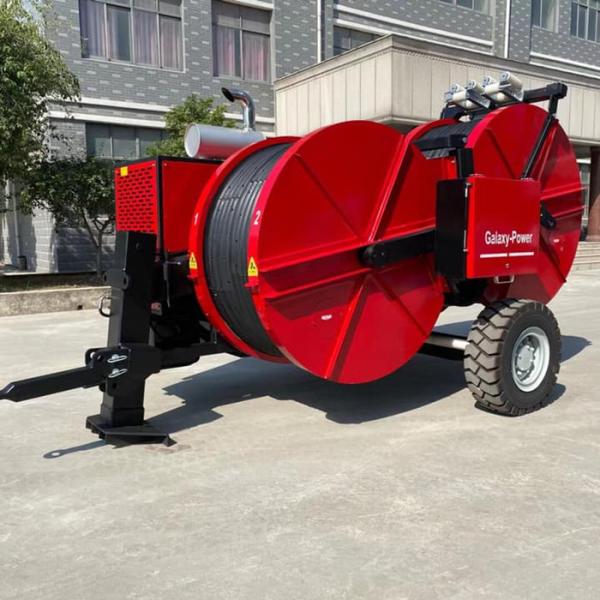

Hydraulic Pump Twin Conductors 8Ton Cable Tension Stringing Equipment

Cable Tensione Stringing Equipment

Our GL2x40(SA-ZY2x40) 8Ton Hydraulic Cable Tension Stringing Equipment is characterized

by high reliability, safe operation, and superior quality. Its bullwheel is lined with abrasion

resistant MC nylon material. With infinitely variable tension control system, this product

can achieve the constant-tension stringing operation.

Also, 8Ton Cable Tension Stringing Equipment contains two sets of hydraulic power output interface,

which is able to connect the hydraulic conductor reel stand.

In case of hydraulic failure, the spring applied hydraulically released brake will run automatically to guarantee the safety.

Cable Tension Stringing Equipment Engine :

Diesel 77kw(103hp) Cooling system water Electrical system 24V

Conductor Stringing Equipment Characteristics :

Bull-wheel diameter 1300/1500mm Max conductor diameter 40mm Groove number 2x5 Total weight 6250kg Overall dimension 4400×2280×2550mm

Conductor Stringing Equipment Main Configuration :

Engine Cummins Hydraulic pump GermanRexroth/Dnish Danfoss Main motor German Rexroth/French Leduc Speed reducer German Rexrothn Hydraulic meter German WIKA Operating handle German Rexroth

Conductor Stringing Equipment Configuration

·Hydraulic dynamometers

·Hydraulic oil cooling system

·Digital speed and meter counter

·Hydraulic front stabilizer

·Grounding connection point

·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Conductor Stringing Equipment Configuration Hydraulic Transmission

·The machine can realize step less speed

·The machine is provided with tension presetting system

Conductor Stringing Equipment Configuration Additional Devices

·Lighting system for the trailer

·2 hydraulic rope/conductor clamp (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Digital speed and meter counter
