3Ton Tensioner 1300mm Bull Brake Single Conductor Stringing
Equipment
3Ton Conductor Stringing Equipment
Single Conductor Stringing Equipment is used for overhead single
conductor or OPGW stringing.
We supply full set of puller, tensioner, stringing blocks, anti
twisting steel wire rope, hydraulic compressors,
come along clamps, ratchet chain hoists, socket pulling grips,
Tackle blocks, swivel joints, OPGW running board etc.

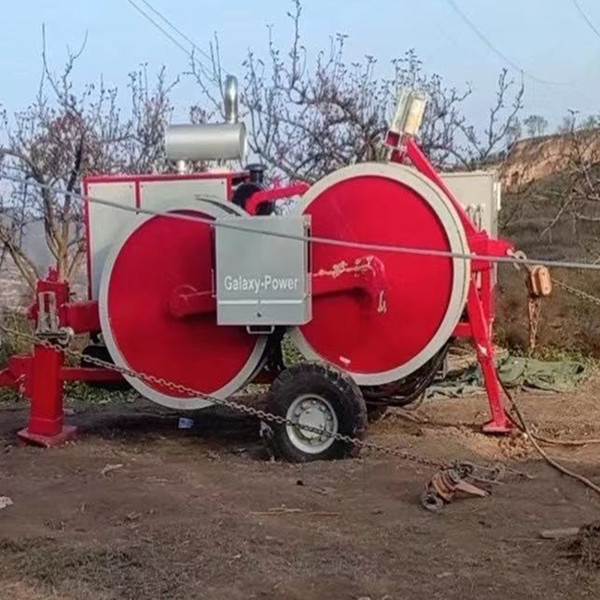

The hydraulic tensioner machine is used to release wire rope for
overhead transmission line.
It is equipped with hydraulic system, and can be easily used and
maintained
3Ton Conductor Stringing Equipment Performance :
Max continuous tension 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 15kN
Max reverse pulling force 20kN
3Ton Conductor Stringing Equipment Engine :
Gassoline engine 12kw(16hp)
Electrical system 12V
3Ton Hydraulic Tensioner Stringing Equipment Characteristics :
Bull-wheel diameter : 1300mm
Max conductor diameter : 40mm
Max Optical fiber cable diameter : 21mm
Groove width : 60mm
Groove number : 5
Total weight : 2064kg

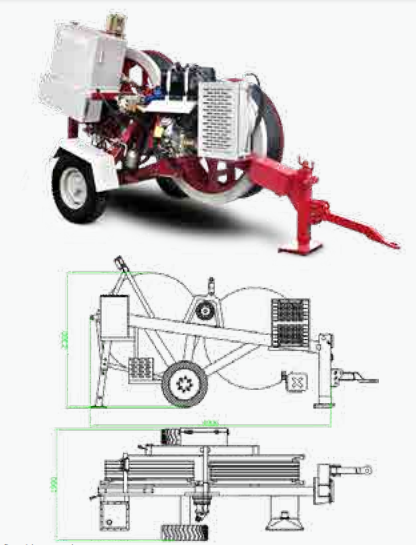

Overall dimension 3700×1950×2150mm
3Ton Hydraulic Tensioner Stringing Equipment Main Configuration :
Engine Japan Honda (or Robin)
Hydraulic pump Tianjin Parker
Main motor Tianjin Permco
Speed reducer German Rexroth / Italy Brevini
Hydraulic meter German WIKA
3Ton Hydraulic Tensioner Stringing Equipment Configuration:
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Grounding connection point
3Ton Hydraulic Tensioner Stringing Equipment Hydraulic Transmission :
·The machine can realize step less speed
·The machine is provided with tension presetting system
3Ton Hydraulic Tensioner Stringing Equipment Additional Devices :
·Air brake system for the trailer (extra charge)
·Hydraulic conductor clamps for drum change operations (extra
charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
