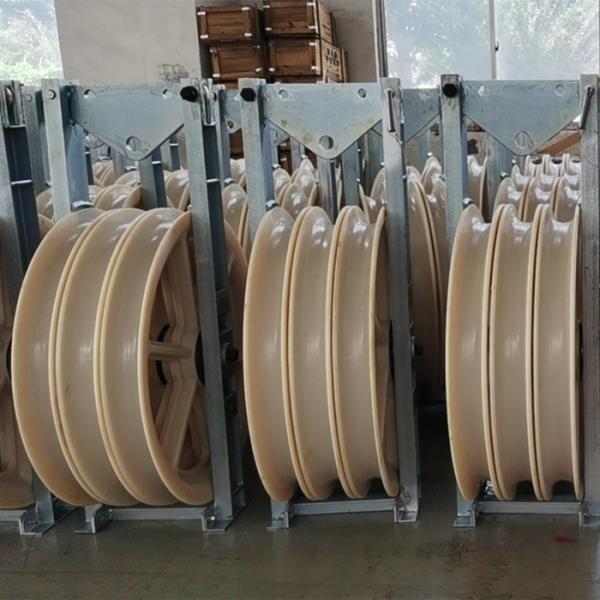

916*110mm Three Wheels Nylon Pulley Conductor Stringing Block
Three Nylon Pulley Conductor Stringing Block
Nylon Pulley Stringing Blocks for overhead transmission line eight
conductors stringing.
Central steel sheave, conductor sheaves made in aluminum alloy or
MC nylon.
1. Transmission Overhead Line Stringing Tool
2. Two or Three Bundled Conductor Lines
3. Customizable Wheels 4. Nylon Wheels
5. Galvanized Steel Frame
6. Diameter: 916mm
7. Wheel Width: 110mm
8. With Rubber Covered or Without
9. Rated Load: 80kN 10. Conductor Size: under 800mm2 11. GALAXY Brand |
Three Nylon Pulley Conductor Stringing Block Specification:
916x110mm Three WheelsTwo Bundle Conductor Nylon pulley
| Performance Model | Wheel size DiameterxWidth(mm) | Conductor Size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHS-508x75 | 508x75 | ≤400 | 40 | 85.5 | Middle Steel Two Nylon |
| SHS-660X100 | 660x100 | ≤500 | 20 | 106 |
| SHSN-508x75 | 508x75 | ≤400 | 40 | 60 | Nylon |
| SHSN-660x100 | 660x100 | ≤500 | 40 | 85 |
| SHSN-822x110 | 822x110 | ≤630 | 60 | 100 |
| SHSN-916x110 | 916x110 | ≤800 | 80 | 140 |
| SHSN-1040x125 | 1040x125 | ≤1000 | 110 | 210 |
| SHSNN-255x110 | 255x110 | ≤630 | 50 | 120 |
| SHSNN-325x150 | 325x150 | ≤1520 | 120 | 165
|
Three Nylon Pulley Conductor Stringing Block Feature :
Protect the cable and conductor from fricting when they are
laying.They can save time and effort.
a. We manufacture a lot of models for different uses in the
overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio
lines.
c. The sheave of the pulley blocks are made from higth strength MC
nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones
are mounted on ball bearings. |
Remarks:All kinds of pulley blocks can be manufactured according to
the customers's requirements.
Company History:
Galaxy power industry limited was established in 2016, a high-tech
enterprise in China, We are specializing in R & D,
manufacturing and sales of kinds of transmission line stringing
equipment and tools such as hydraulic puller, tensioner,
underground cable conductor pulleys, anti-twisting galvanized steel
rope as well as providing accessories and technical
service for customer. Galaxy has developed as one of the largest
stringing equipment and tools manufacturer in China
which supply more than 200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
