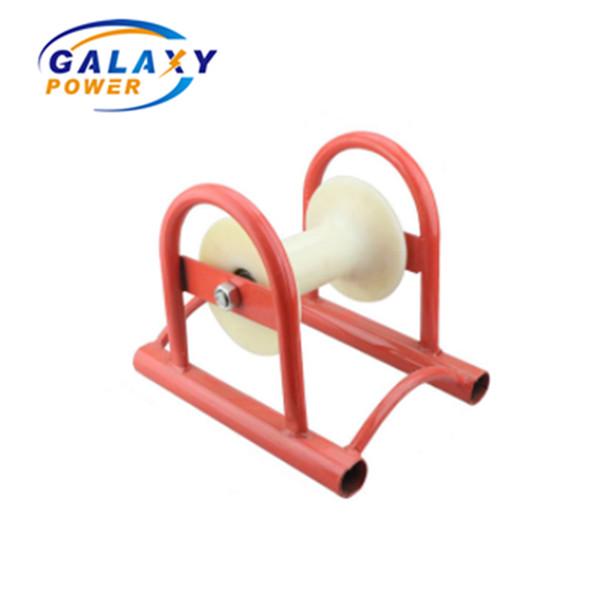

Load 5KN LV/MV Pulling Cable Ground Roller Nylon Sheave Laying
Cable
Cable Ground Roller Specifications
Cable Ground Rolle and cable pulling equipment are of steel
construction with zinc plating, includes straight cable roller,
corner cable roller, triple corner roller ,Trench Rollers,Bridge
roller ,Manhole roller, Multi-function roller and special cable
rollers for pulling underground cables into trenches and ducts
,etc.
Cable roller give a convenient ways to get through corner
,manhole,trench,tc.
Cable Ground Roller Parameter:
| Model | Frame | Rated load (kN) | Application cable diameter (mm) | Weight (kg) | Wheel material | |
| SHL1 | Cast aluminum | 5 | 150 | 5.4 | Aluminum | |
| SHL1N | Cast aluminum | 5 | 150 | 3.6 | Nylon | |
| SHL1B | Steel plate | 5 | 150 | 5.5 | Aluminum | |
| SHL1BN | Steel plate | 5 | 150 | 3.7 | Nylon | |
| SHL2BN | Steel plate | 5 | 160 | 5.5 | Nylon | |
| SHL3BN | Steel plate | 5 | 200 | 8.0 | Nylon | |
| SHL1G | Steel pipe | 5 | 150 | 5.1 | Aluminum | |
| SHL1GN | Steel pipe | 5 | 150 | 3.3 | Nylon | |
| SHL2GN | Steel pipe | 5 | 160 | 5.7 | Nylon | |
| SHL3GN | Steel pipe | 5 | 200 | 8.0 | Nylon | |
| SHLG1 | Steel pipe high support | 5 | 150 | 9.4 | Aluminum | |
| SHLG1N | Steel pipe high support | 5 | 150 | 7.8 | Nylon | |
Cable Ground Roller Types:
1. Cable Ground Roller , aluminium
Abrasion resistant aluminium rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
2. Cable Ground Roller , steel
Abrasion resistant steel rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
Cable Ground Roller Features:
1.Able to carry high loads
2.With chromel stell ball bearing
3.With a high load-bearing capacity
4.Self-lubrication, precision machined and low friction
5.Low noise, stable performance and durable
6.Able to work in sub-zero temperatures and have low rolling
resistance
7.Suitable for countless applications: sliding pipe, machine
equipment and other sliding systems.
Cable Ground Roller Application :
The product is widely used in engineering machinery, electric
power, petroleum, mining, coal, metallurgy, paper making,
construction, port, cable and other industries, cable tunnels show
exhibition place or on the ground put the extension cable and wire
release, the product is divided into single-round and three, non
fragile cables. We manufacture a lot of models Cable pulling block
for different uses in the overhead transmission
Cable Ground Roller Useage:
- It can single use only or use in series.The connection part is
bolt,so it can change the angle as you want.
- Using spiral springs as power without electric energy consumption
to keep reliable in operation
- Using collector slip spring carbon brush bracket to transfer the
electric energy steadily and continuouy
