Transmission Overhead Line 1x50KN Hydraulic Tensioner Stringing
Equipment

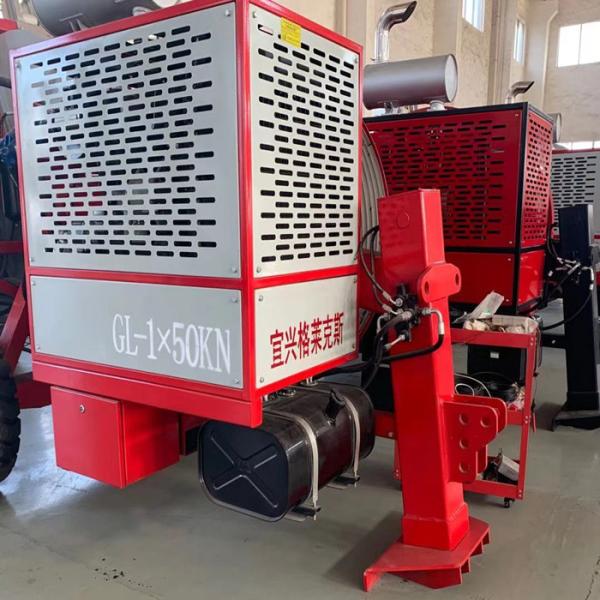

1x50KN Tensioner Stringing Equipment
The universal unit can serve as a tensioner or a puller as desired,
for stringing various conductors or earth wires.
It is ideal for retrieving operation, by using the old conductor as
the pulling rope. It is capable of stringing 1onductor
simultaneously.
1x50KN Tensioner Stringing Equipment Features:
- With closed hydraulic circuit and variable displacement plunger
pump, the pull/ tension force could be step less controlled.
- With the radiator imported from Germany, the machine has good
heat dissipate performance.
- With a negative spring applied brake, and automatic overload
protection.
- With rigid axle for towing at high speed, the machine looks
beautiful.
- With hydraulic power take off to power a take-up reel stand or
steel rope take-up carriage.
- Heavy duty R-tires with excellent shock-absorbing performance.
1x50KN Tensioner Stringing Equipment Performance
Max intermittent tension 50kN Max continuous tension 40kN Speed at max pull 2.5km/h Max speed 5km/h Tension at max speed 25kN Max reverse pulling force 45kN Max reverse pulling speed 2.4km/h |
1x50KN Tensioner Stringing Equipment Engine
Diesel 77kw(103hp) Cooling system water Electrical system 24V |
1x50KN Tensioner Stringing Equipment Characteristics
Bull-wheel diameter 1300/1500mm Max conductor diameter 55mm Max optical fiber cable diameter 21mm Groove width 68mm Groove number 2x6 Total weight 2400kg Overall dimension 4000×1980×2550mm |
1x50KN Tensioner Stringing Equipment Main Configuration
Engine Cummins Hydraulic pump GermanRexroth/Dnish Danfoss Main motor German Rexroth/French Leduc Speed reducer German Rexrothn Hydraulic meter German WIKA Operating handle German Rexrot |
Configuration
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Digital speed and meter counter
·Hydraulic front stabilizer
·Grounding connection point
·Hydraulic power pack to control up to 2 separated drum stands with
hydraulic motor
Hydraulic Transmission
·The machine can realize step less speed
·The machine is provided with tension presetting system
Additional Devices
·Lighting system for the trailer
·2 hydraulic rope/conductor clamp (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter
