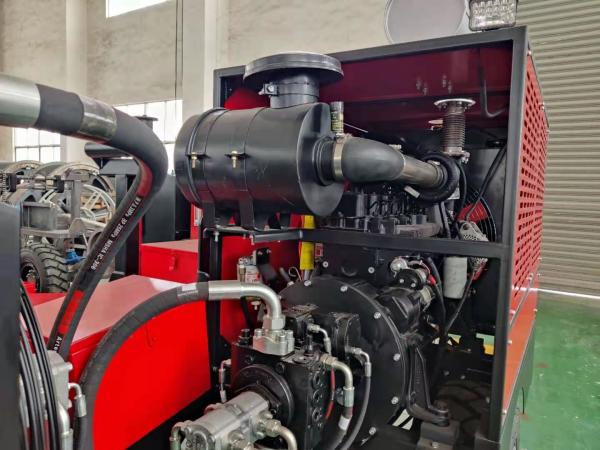

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor

Product Description

GS-60 Hydraulic Puller

• Model: GS-60
• Max intermittent pull: 60kN
• Engine: Cummins
• Diesel: 77kw(103hp)

Characteristics

• Bull-wheel diameter: 450mm
• Groove number: 7
• Max rope diameter : 18mm
• Max diameter of rope reel: 1400mm
• Total weight: 3500kg
• Overall dimension (length*width*height): 3800×2100×2300mm

Performance

• Max intermittent pull: 60kN
• Max continuous pull: 50kN
• Speed at max pull: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 25kN

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
