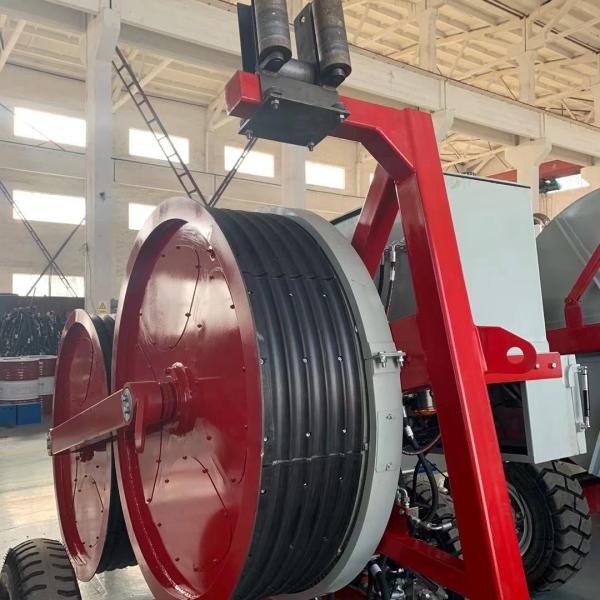

SA-ZY-1x30 Single Bundle 12kw(16hp) Gasoline 3Ton Power Line Stringing Equipment

3T Gasoline Power Line Stringing Equipment

Our GL1x30KN Hydraulic Tensioner is an ideal product for releasing a variety of electric conductors and ground.

Also, it is applicable for the tension stringing operation of both optical fiber composite overhead ground wire (OPGW)

and all-dielectric self-supporting optic fiber cable (ADSS).

3T Power Line Stringing Equipment Engine :

Gassoline engine 12kw(16hp) Electrical system 12V

3T Power Line Stringing Equipment Characteristics :

Bull-wheel diameter : 1300mm Max conductor diameter : 40mm Max Optical fiber cable diameter : 21mm Groove width : 60mm Groove number : 5 Total weight : 2064kg Overall dimension 3700×1950×2150mm

3T Power Line Stringing Equipment Main Configuration :

Engine Japan Honda (or Robin) Hydraulic pump Tianjin Parker Main motor Tianjin Permco Speed reducer German Rexroth / Italy Brevini Hydraulic meter German WIKA

Configuration:

·Hydraulic dynamometers

·Hydraulic oil cooling system

·Grounding connection point

Hydraulic Transmission :

·The machine can realize step less speed

·The machine is provided with tension presetting system

Additional Devices :

·Air brake system for the trailer (extra charge)

·Hydraulic conductor clamps for drum change operations (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h
