2.5km/H Electrical Cable Pulling Equipment , 4800kg Hydraulic Cable Puller

Ask Lasest Price
Brand Name :	GALAXY
Model Number :	GS120
Certification :	ISO,CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000 sets per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

2.5km/H Electrical Cable Pulling Equipment , 4800kg Hydraulic Cable Puller

Stringing Equipment GS120 Hydraulic Puller Machine Max Continuous Pulling force 120KN

This machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands. And it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Quick Detail

♦ Model: GS120

♦ Overall dimension: 4000×2300×2300mm

Configuration

♦ Hydraulic front stabilizer

♦ Hydraulic oil cooling system

♦ Control instruments for hydraulic systems and diesel engines

Performance parameter

Model		GS40	GS60	GS90	GS120	GS150	GS180	GS220	GS280	GS380
Max intermittent pull	KN	40	60	90	120	150	180	220	280	380
Max continuous pull	KN	30	50	80	100	120	150	180	250	350
Speed at max pull	km/h	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max speed	km/h	5	5	5	5	5	5	5	5	5
Pull at max speed	KN	20	25	40	50	60	75	90	120	170
Diese	kw(hp)	77(103)	77(103)	118(158)	129(173)	129(173)	239(320)	239(320)	298(400)	440(590)
Cooling system		Water	Water	Water	Water	Water	Water	Water	Water	Water
Electrical system	V	24	24	24	24	24	24	24	24	24
Bull-wheel diamete	mm	400	450	540	600	600	700	760	960	960
Groove number		7	7	8	10	10	10	10	11	11
Max rope diameter	mm	16	18	21	24	24	27	30	38	38
Max diameter of rope reel	mm	1200	1400	1400	1400	1600	1400	1600	1600	1900
Total weight	kg	3000	3500	4680	4800	5500	6800	6800	12600	13600

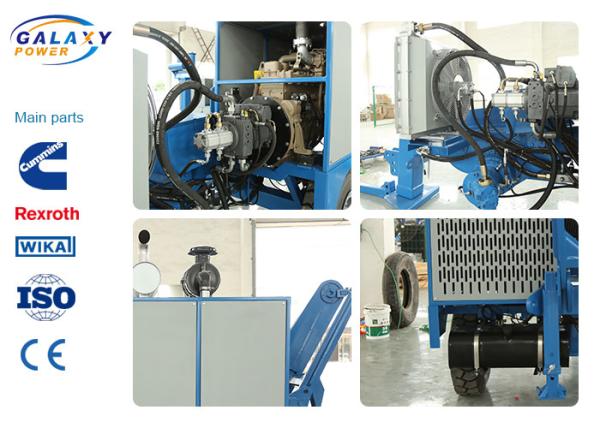

Main Configuration
Engine	Cummins
Hydraulic meter	German
Operating handle	German Rexroth
Main moter speed reducer
Main pump
Tail bracket hoisting motor	American Eton

Additional Devices	Lighting system for the trailer
	Extra shaft
	Swivel guide rope roller
	Hydraulic rope clamp for reel change
	Trailer for towing at max speed of 30 km/h
	Digital speed and meter counter (extra charge)
