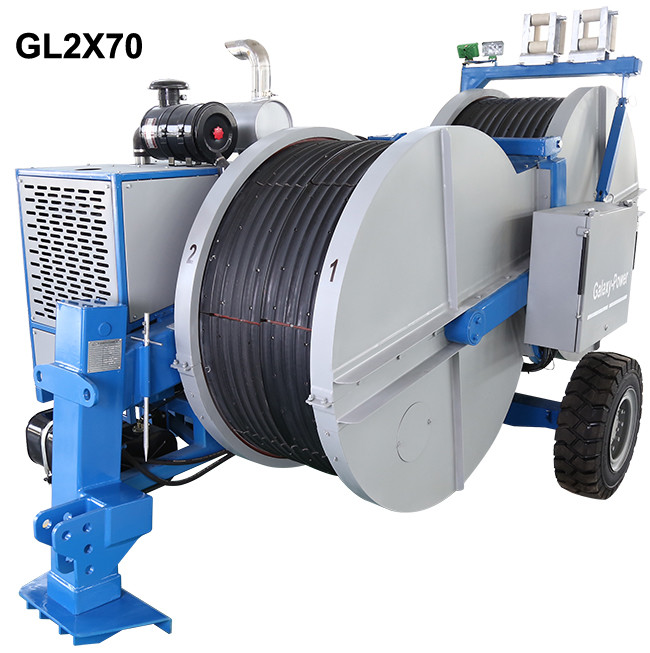

Transmission Line Equipment Max Continuous Tension: 2X70KN Hydraulic Laying Tensioner

► Hydraulic Tensioner GL2×70 allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains.

► The machine can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrain.

Configuration

► 2 negative self-acting hydraulic brakes

► 2 hydraulic dynamometers

► 2 digital meter counters

► 2 digital speed meters

► Control instruments for hydraulic system and diesel engine

► Rigid axle for towing at max speed of 30km/h with mechanical parking brake

► Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

► Grounding connection point

► Hydraulic oil cooling system

Hydraulic Transmission

► Hydraulic Tensioner GL2×70 can realize step less speed

► It is provided with tension presetting system

Engine

► Diesel: 77kw(103hp)

► Electrical system: 24V

► Cooling system: water

Additional Devices

► 2 hydraulic rope/conductor clamp (extra charge)

► Lighting system for the trailer

► Swivel guide rope roller

► Trailer for towing at max speed of 30 km/h

► Digital speed and meter counter

► Air brake system for the trailer

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement

Exhibition
