    Stringing Equipment For Overhead Power Lines Groove Number 2x12

    Ask Lasest Price
    Brand Name : GALAXY
    Model Number : GL2X80
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 15 sets per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Stringing Equipment For Overhead Power Lines Groove Number 2x12

    Stringing Equipment For Overhead Power Lines Groove Number 2x12


    Characteristics
    • Bull-wheel diameter: 1300/1500mm
    • Groove number: 2x12
    • Max conductor diameter: 35mm
    • Total weight: 9000kg
    • Overall dimension (length*width*height):5500×2300×2600mm
    Performance
    • Max tension: 2x80kN
    • Speed at max tension: 2.5km/h
    • Max speed: 5km/h
    • Pull at max speed: 2x40kN
    • Max reverse pulling force: 2x60kN
    • Max reverse pulling speed: 2km/h

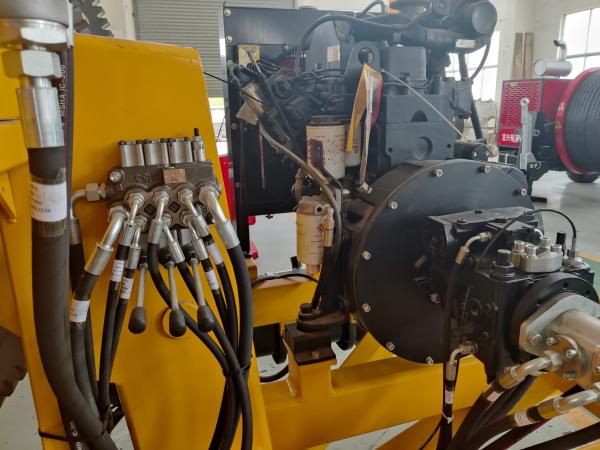

    Main configuration
    • Engine: Cummins
    • Hydraulic pump: German Rexroth/Dnish Danfoss
    • Main motor:German Rexroth/French Leduc
    • Speed reducer: German Rexroth/Italy Bonfiglioli
    • Hydraulic meter: German
    • Operating handle: German Rexroth
    • Main valve: German Rexroth/US Sun/Italy Atos
    Engine
    • Diesel: 97kw(130hp)
    • Cooling system: water
    • Electrical system: 24V
    Hydraulic Transmission
    • The machine can realize step less speed.
    • The machine is provided with tension presetting system.
    Configuration
    • 2 negative self-acting hydraulic brakes
    • 2 hydraulic dynamometers
    • Hydraulic oil cooling system
    • 2 digital meter counters
    • 2 digital speed meters
    • Control instruments for hydraulic system and diesel engine
    • Rigid axle for towing at max speed of 30km/h with mechanical parking brake
    • Hydraulic power pack to control up to 6 separate drum stands with hydraulic motor
    • Grounding connection point
    Additional Devices
    • Lighting system for the trailer
    • 6 hydraulic rope/conductor clamp (extra charge)
    • Swivel guide rope roller
    • Trailer for towing at max speed of 30 km/h
    • Digital speed and meter counter
    • Air brake system for the trailer (extra charge)
