    Gasoline Pump Underground Cable Pulling Equipment Conductor Hydraulic Compressor Units Electric

    Ask Lasest Price
    Brand Name : GALAXY
    Model Number : GXYB-100
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Gasoline Pump Underground Cable Pulling Equipment Conductor Hydraulic Compressor Units Electric

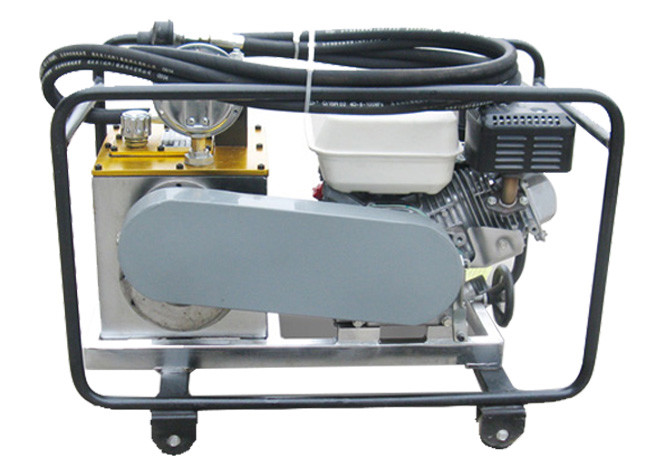

    Conductor Hydraulic Compressor Units Underground Cable Pulling Equipment for Gasoline Pump

    Product Parameter

    For Gasoline pump
    ModelMax compression forceRated pressureFlowGasoline volumePowerWeight
    GXYB-100100Mpa80kN1.6L/min8L4hp83kg

    For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.
    ModelMax compression force (kN)Rated pressure (kN)Conductor size (mm)Max stroke (mm)Weight (kg)
    GXQY-3535070≤2402512
    GXQY-6565094≤5002525
    GXQY-125125094≤7202540
    GXQY-200200094≤14402585

    Gasoline Pump Underground Cable Pulling Equipment Conductor Hydraulic Compressor Units Electric

    For Die
    ModelCompressor modelAluminum DiesSteel DiesCopper Dies
    GXQYD-35GXQY-3516/18/20/22/24/26/30/32/34/3616~500mm2
    GXQYD-65GXQY-6526/28/30/32/34/36/38/40/45/5012/14/16/18/20/22/24/2616~800mm2
    GXQYD-125GXQY-12526/28/30/32/34/36/38/40/45/50/52/55/6012/14/16/18/20/22/24/2616~800mm2
    GXQYD-200GXQY-20026/28/30/32/34/36/38/40/45/50/52/55/60/65/70/75/8012/14/16/18/20/22/24/26/28/30/3216~800mm2

    Gasoline Pump Underground Cable Pulling Equipment Conductor Hydraulic Compressor Units Electric


    Product Feature

    1.OHV ENGINE 2.CLOSE IN STRUCTURE AND CONVENIENT IN OPERATION 3.LOW SOUND, LESS OIL CONSUMPTION, LIGHT WEIGHT, LARGE DISCHARGE

    1. ADOPT OHV ENGINE

    2. CLOSE IN STRUCTURE AND CONVENIENT IN OPERATION

    3. LOW SOUND, LESS OIL CONSUMPTION, LIGHT WEIGHT AND LARGE DISCHARGE

    4. NO NEEDED POWER SOURCE, SAFE USING.

    5. EASY TO OPERATION AND MOVE.
