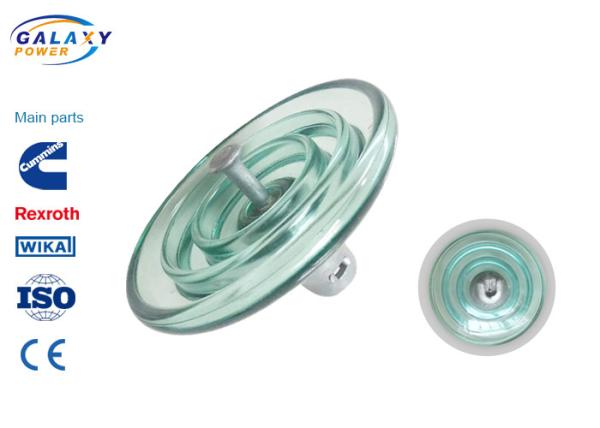

    Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators

    Ask Lasest Price
    Brand Name : GALAXY
    Model Number : GLLXY-100
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50000 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators

    Transmission Line Accessories High Voltage Disc/Suspension Type Anti-pollution Toughened Glass Insulator


    Product advantages

    • Excellent mechanical performance
    • Light weight
    • Good pollution flashover resistance
    • Excellent electrical corrosion resistance
    • Aging resistance
    • Good structural stability
    • High line operation efficiency

    Product parameters

    ModelGLLXY-70GLLXY1-70GLLXY-100GLLXY-120GLLXY3-160GLLXY3-210GLLXY-240GLLXY-300

    Mechanical damage load≥

    KN

    7070100120160210240300

    Battering load≥

    KN

    5655656786781017101710171017

    Electromechanical load test value/h

    KN

    52.552.57590120157.5180225

    Nominal Height H

    mm

    127146146146155170170195

    Nominal diameter of insulator D

    mm

    255255255255280280280320

    Minimum nominal creepage distance

    mm

    320320320320380390390485

    Peak voltage tolerance for lightning full - wave shock

    kv

    ≥100≥100≥100≥100≥105≥105≥105≥105


    Product characteristics

    • Made of toughened glass. Because of the high mechanical strength of the glass insulator surface, it is not easy to crack the surface. The electrical strength of glass generally remains constant throughout the operation period, and the aging process of glass is much slower than that of porcelain.
    • Insulator is a special insulation control, which can play an important role in overhead transmission lines.
    • In the early years, insulators were mostly used for utility poles, and slowly developed from one end of the high voltage wire connection tower to hang many disk-shaped insulators, which were usually made of glass or ceramics to increase the distance of climbing, and were called insulators.
    • Insulators should not fail due to various mechanical and electrical stresses caused by changes in the environment and electrical load conditions, otherwise insulators will not play a significant role, which will damage the service life of the entire line.
    • Insulator is one of the key components of HV transmission line, and its performance directly affects the operation safety of the whole transmission line. Glass insulators are widely used because of their zero-value self-breaking and easy maintenance.
