Overhead Line 4Ton Diesel Hydraulic Cable Tensioner Stringing
Equipment

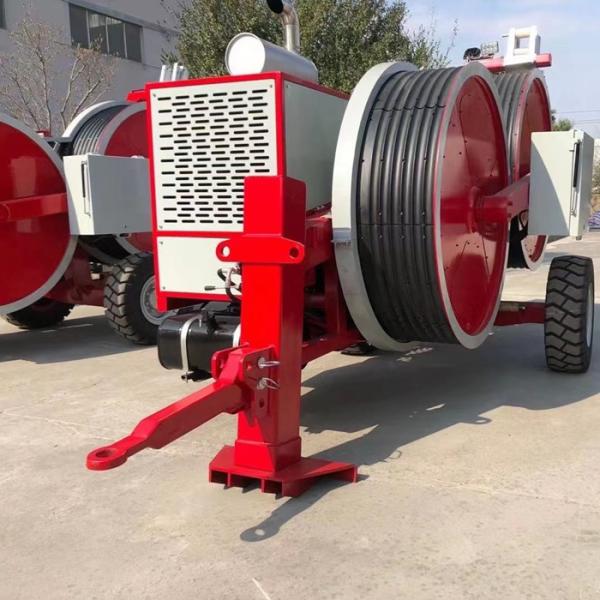

4Ton Cable Tensioner Stringing Equipment Description:
Our GL1x40 Single Conductor Stringing Equipment is used for overhead single
conductor or OPGW stringing. We supply full set of puller,
tensioner, stringing blocks, come along clamps, drum stands etc.
If the conductor diameter is more than 30 mm, or the stringing
operation is carried in mountain area, 6 ton hydraulic puller (GS60) and 4 ton hydraulic tension can be used for pulling long distance
transmission lines (6-8 kms)
4Ton Cable Tensioner Stringing Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS
optic fiber cable stringing in line stringing operation.
4Ton Cable Tensioner Stringing Equipment Performance:
| Maximum intermittent tension | 45KN |
| Maximum sustained tension | 40KN |
| Correspending speed | 2.5km/h |
| Maximum pay-off speed | 5km/h |
| Corresponding tension | 20KN |
| Maximum back-traping force | 35KN |
4Ton Cable Tensioner Stringing Equipment Engine:
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electric system | 24V |
4Ton Cable Tensioner Stringing Equipment Characteristics:
| Bull-wheel diameter | 1300mm |
| Max conductor diameter | 40mm |
| Groove number | 5 |
| Total weight | 2300kg |
| Overall dimension | 3520×2000×1710mm |
4Ton Cable Tensioner Stringing Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Remarks:
There are three important steps for selection of hydraulic
conductor tensioner:
First, it is important to know the diameter or model of biggest
conductor in transmission line project,
because the weight of conductor can be used to calculate the
tension force on conductor.
Second, how many conductors in one phase of transmission line? Is
it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it
Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in
one stringing section? How many towers
are there is one tension section?
1x40KN Transmission Line Equipment Description:
4 Ton Hydraulic Cable Tensioner is used for single conductor or
OPGW stringing on overhead transmisson line.
It is equipped with water cooled Cummins diesel engine and German
Rexroth hydraulic pump,
Main motor,Hydraulic meter,Operating handle
1x40KN Transmission Line Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS
optic fiber cable stringing in line stringing operation.
1x40KN Transmission Line Equipment Performance:
| Maximum intermittent tension | 45KN |
| Maximum sustained tension | 40KN |
| Correspending speed | 2.5km/h |
| Maximum pay-off speed | 5km/h |
| Corresponding tension | 20KN |
| Maximum back-traping force | 35KN |
1x40KN Transmission Line Equipment Engine:
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electric system | 24V |
1x40KN Transmission Line Equipment Characteristics:
| Bull-wheel diameter | 1300mm |
| Max conductor diameter | 40mm |
| Groove number | 5 |
| Total weight | 2300kg |
| Overall dimension | 3520×2000×1710mm |
1x40KN Transmission Line Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Remarks:
There are three important steps for selection of hydraulic
conductor tensioner:
First, it is important to know the diameter or model of biggest
conductor in transmission line project,
because the weight of conductor can be used to calculate the
tension force on conductor.
Second, how many conductors in one phase of transmission line? Is
it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it
Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in
one stringing section? How many towers
are there is one tension section?
